MaxiCharger 80A 19.2kW Residential EV Charger

Level 2 Hardwired SAE J1772 16–80A Adjustable
Specifications

Maximum Output | 19.2 kW / 80 A · Adjustable 16–80 A
Input Voltage | 208 / 240 V AC
Installation | Hardwired · 100 A Circuit for Full Output
Charging Cable | 25 ft · SAE J1772
Load Management | ALM & DLB Supported · Additional Hardware Required for ALM
Connectivity | Wi-Fi · Bluetooth · Ethernet
Enclosure Rating | IP65 / NEMA 4X
Warranty | 5 Years

Description

80A / 19.2KW FAST HOME CHARGING: Delivers up to 19.2kW of Level 2 charging power at 240V, adding up to 70 miles of range per charging hour on compatible EVs. Adjust charging current from 16A to 80A to match your home electrical capacity and charging needs.

ALM & DLB LOAD MANAGEMENT: Supports both Adaptive Load Management (ALM) and charger-to-charger Dynamic Load Balancing (DLB) for more flexible home energy management. ALM requires compatible additional hardware, while DLB works between chargers without additional hardware.

SAE J1772 WITH 25 FT CABLE: Works directly with J1772-equipped EVs and PHEVs, with a 25 ft charging cable for flexible reach across garages and driveways. Compatible NACS vehicles can charge with an appropriate J1772-to-NACS adapter.

SMART APP CONTROL: Start, stop and schedule charging with the Autel Charge App, adjust charging current, receive status notifications, and review charging activity. Schedule charging around off-peak electricity hours for easier everyday home charging.

ONE-CLICK INSTALLATION & 5-YEAR WARRANTY: The modular One-Click design separates the main charger from the wiring section for easier installation and maintenance. Built for indoor and outdoor use with an IP65 / NEMA 4X enclosure and integrated electrical protection. The charger body, backplate and internal components are backed by a 5-year warranty.

Sale price$1,299.00 USD
0% OFF
Extra USD $80 off at checkout Extra $80 off at checkout Save $130 at $1,500+ Save $130 at $1,500+
Autel EV Chargers Official Website Autel EV Chargers Official Website Autel EV Chargers Official Website Autel EV Chargers Official Website Autel EV Chargers Official Website Autel EV Chargers Official Website Autel EV Chargers Official Website Autel EV Chargers Official Website Autel EV Chargers Official Website Autel EV Chargers Official Website Autel EV Chargers Official Website Autel EV Chargers Official Website
  • Free Shipping
  • 30-Day Returns
  • 5-Year Warranty
  • Secure Checkout

Find EV Charger Rebates

Explore federal, state and utility EV incentives.

EV CHARGER INCENTIVES

Find EV Charger Incentives

$1,299.00

OUR FASTEST HOME CHARGER YET

Autel home charger with its connected cable and charging connector against a dark background
MAX CURRENT
80 A
CABLE LENGTH
25 ft
ADJUSTABLE
16–80 A
WARRANTY
5 YEAR
An Autel charger connected to a dark SUV, with the cable visible between charger and vehicle

UP TO 70 MILES PER CHARGING HOUR

Add up to 140 miles of range in just 2 hours on compatible EVs. Plug in overnight and wake up ready for the road ahead.

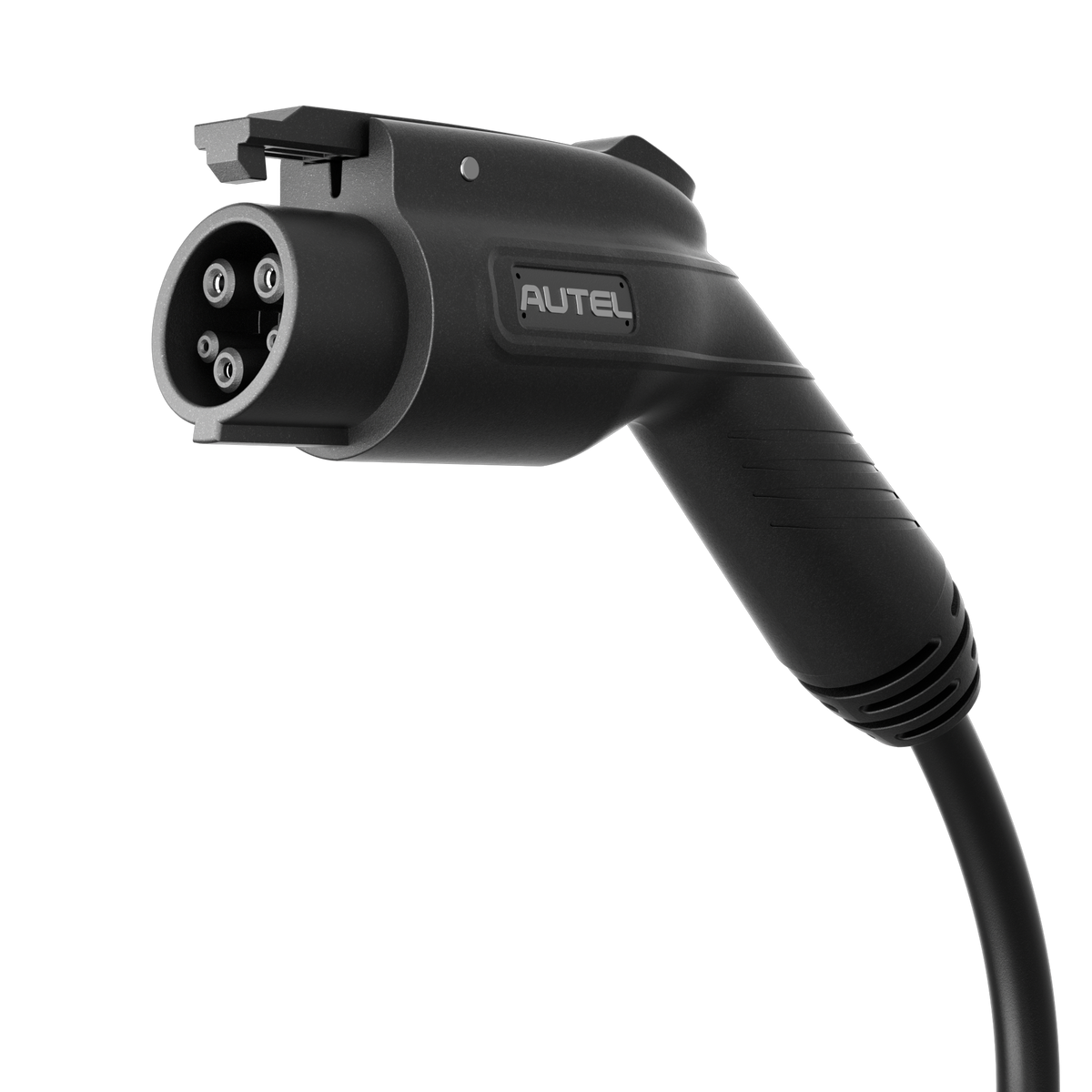

A hand holding a J1772 connector beside a vehicle charging port

WIDE EV/PHEV COMPATIBILITY

Compatible with J1772-equipped EVs and PHEVs across North America. Plug in directly, or use a compatible J1772-to-NACS AC adapter (not included) for supported NACS vehicles.

A close view of the charger's internal current selector and wiring terminals
80

MAX OUTPUT

FLEXIBLE FOR TODAY READY FOR THE FUTURE

Set output for your home today, with up to 80A available when your vehicle and installation support it. Adjust charging current anytime in the Autel Charge app.

A hand holding a phone with the Autel Charge scheduling screen, with a connected SUV and charger behind it
Download on the App Store Get it on Google Play

MORE THAN SCHEDULING

Stay informed with charging status notifications, review your charging history and share charger access with your family—all in Autel Charge app.

The Autel charger mounted outdoors with snow on its housing and snowflakes in the air

BUILT FOR LIFE OUTSIDE

A NEMA 4X-rated enclosure helps protect against rain, dust and corrosion. The charging cable stays flexible in cold weather for easier handling.

An installer's hands positioning the charger housing beside the wall-mounted backplate and wiring

MOUNT WIRE ATTACH

The one-click installation design connects a user-replaceable main unit to a separate wiring box, simplifying installation and keeping connections accessible for maintenance. Our 5-year warranty provides replacement rather than repair.

Before you install

Product Support

Product Specifications

Charging

Maximum output
19.2 kW at 240 V
Maximum current
80 A
Adjustable current
16–80 A
Input voltage
208 / 240 V AC, 50 / 60 Hz
Current settings
16 / 24 / 32 / 40 / 48 / 50 / 64 / 72 / 80 A

Connector and Cable

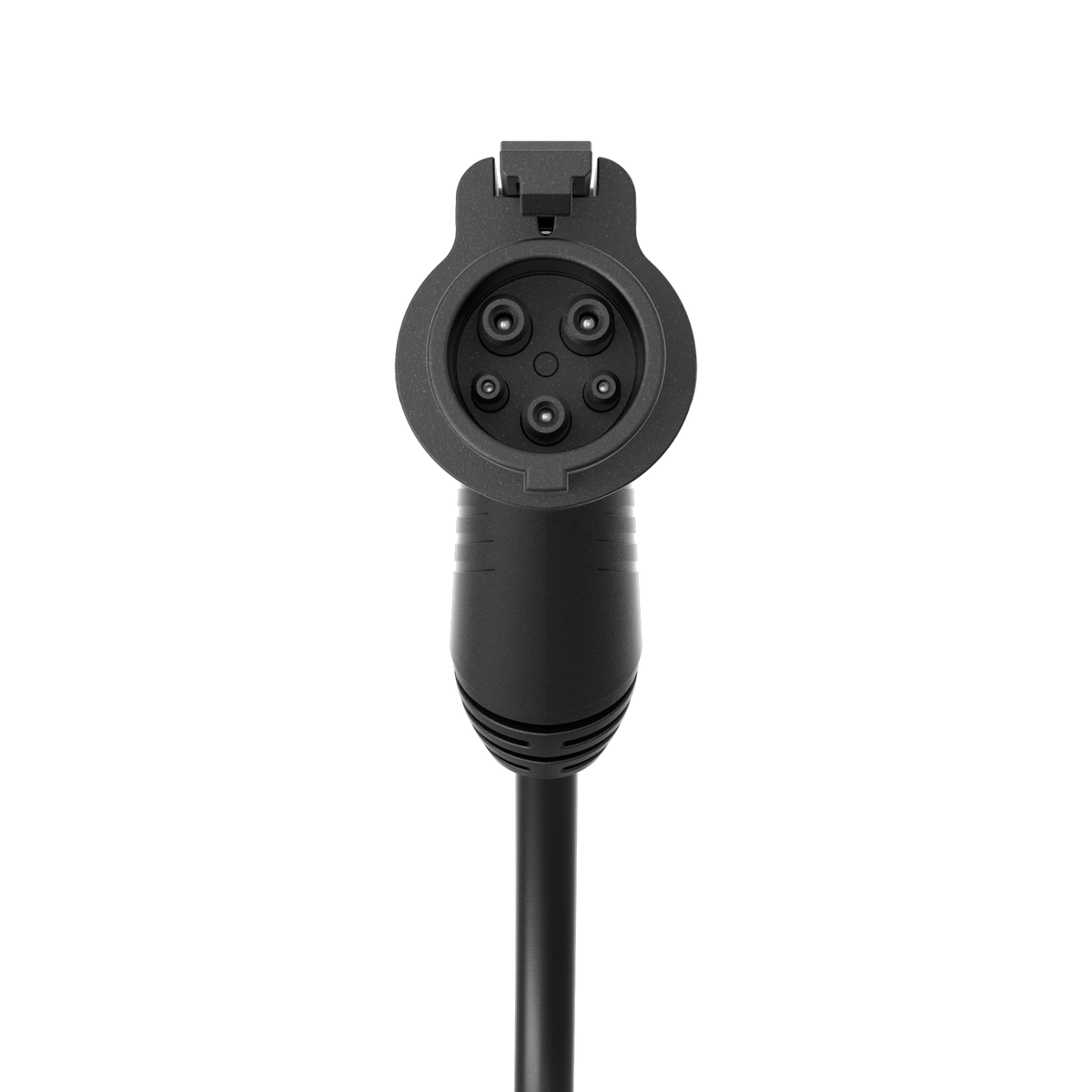

Vehicle connector
SAE J1772
Cable length
25 ft / 7.5 m

Installation

Installation type
Hardwired
Circuit requirement
100 A circuit for full 80 A output
Mounting
Wall mounted
Environment
Indoor / outdoor

Connectivity

Wireless
Wi-Fi + Bluetooth
Wired connection
Ethernet
Mobile app
Autel Charge

Protection

Enclosure rating
IP65 / NEMA 4X
Ground fault detection
20 mA CCID
Electrical protection
Overcurrent, overvoltage, undervoltage, overtemperature and integrated surge protection

Dimensions

Dimensions (H × W × D)
14.5 × 8.5 × 5.1 in / 368 × 216 × 130 mm
Package weight
Approx. 20.3 lb / 9.2 kg

What's in the Box

Main Unit
Main Unit
Wire Box
Wire Box
Quick Reference Guide
Quick Reference Guide
Amperage Labels
Amperage Labels
Accessories
Accessories
