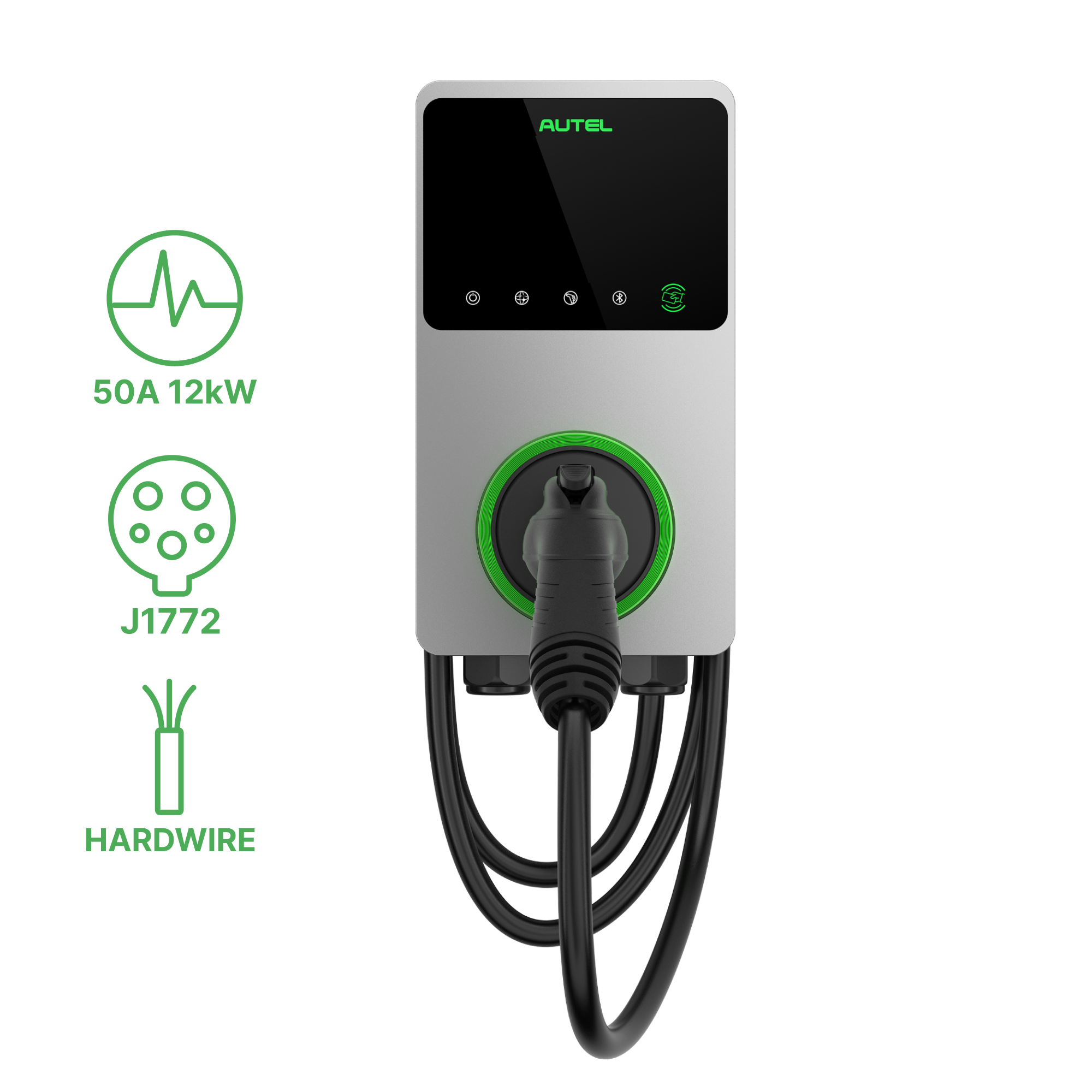

AC Elite Home 50A 12kW EV Charger | CA
Key Features
- Compatible with All EVs.
- 50A, 12kW for Fast Charging
- Connect via Bluetooth/Wi-Fi/Ethernet/CAN/RS485
- Easy to Control, Manage and Schedule Charging via App
- 25ft Cable Length for Flexible and Convenient Charging
Free Shipping
30-Day Free Return and 3-Year Warranty
- Overview
- Tech Specs

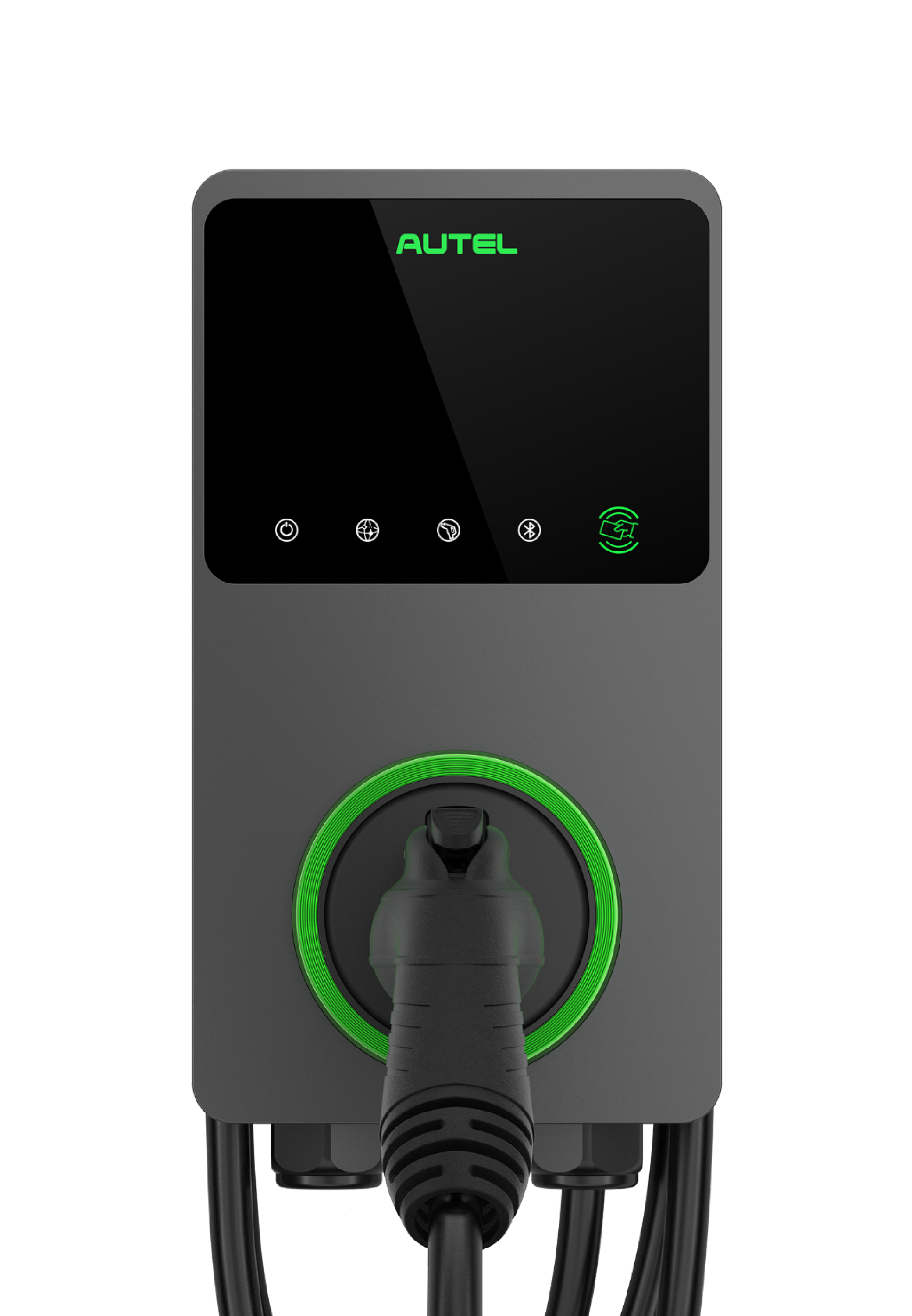

MaxiCharger AC Elite EV Charger
Enjoy Fast&Smart Charging with Autel
Take a more thorough look.
Explore More Possibilities with Our EV Charger

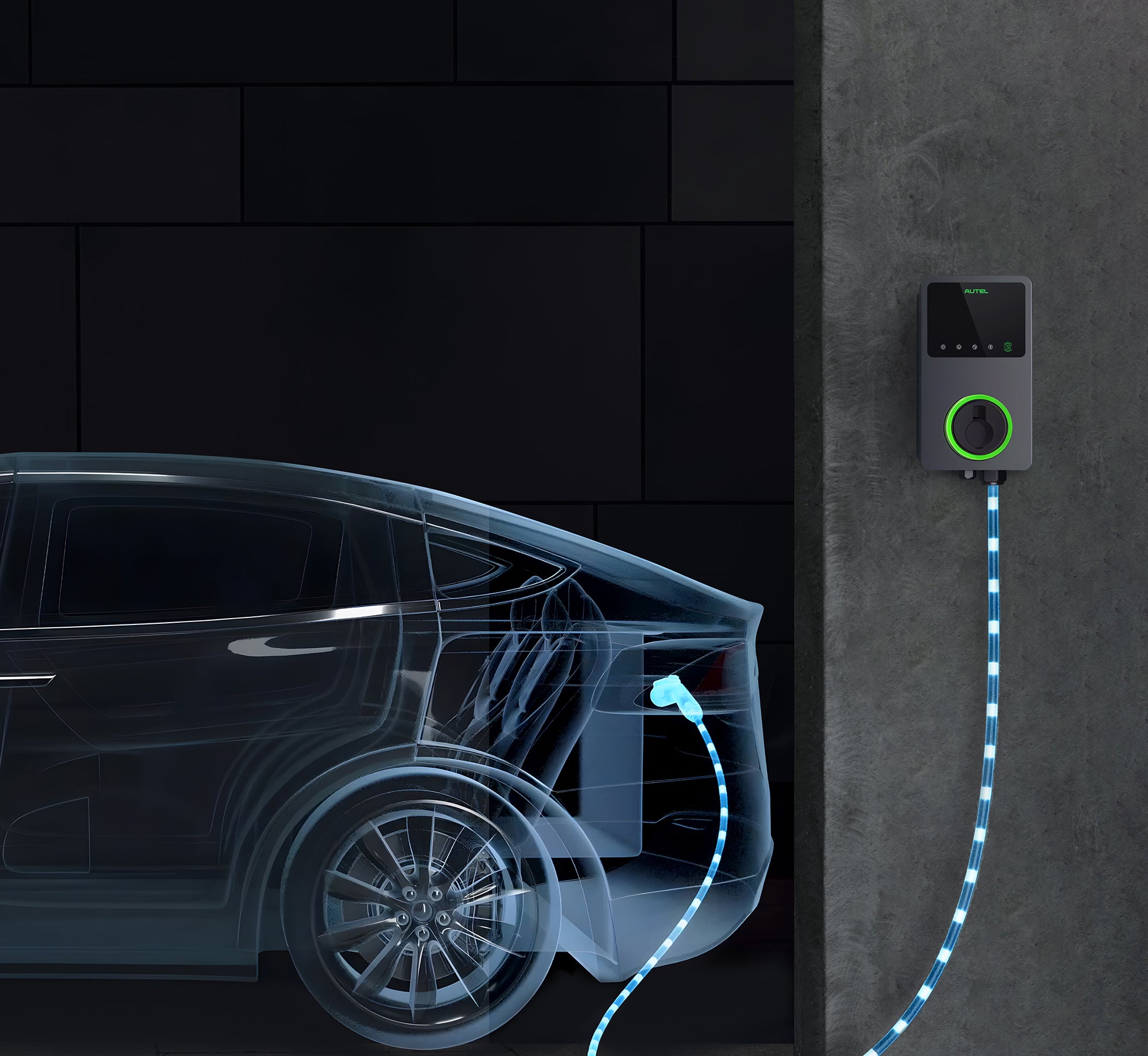

Discover the multiple scenarios for using our charging stations. Whether at home, work, or travel, our charging solutions adapt to your needs for a seamless charging experience.
With a powerful output of up to 50 amps and 12 kW, our EV charger significantly reduces range anxiety by providing up to 78 km (48 miles) of driving range in just one hour of charging. That's up to 9 times faster than Level 1 AC chargers, ensuring your vehicle is always ready for the road, quicker than ever.

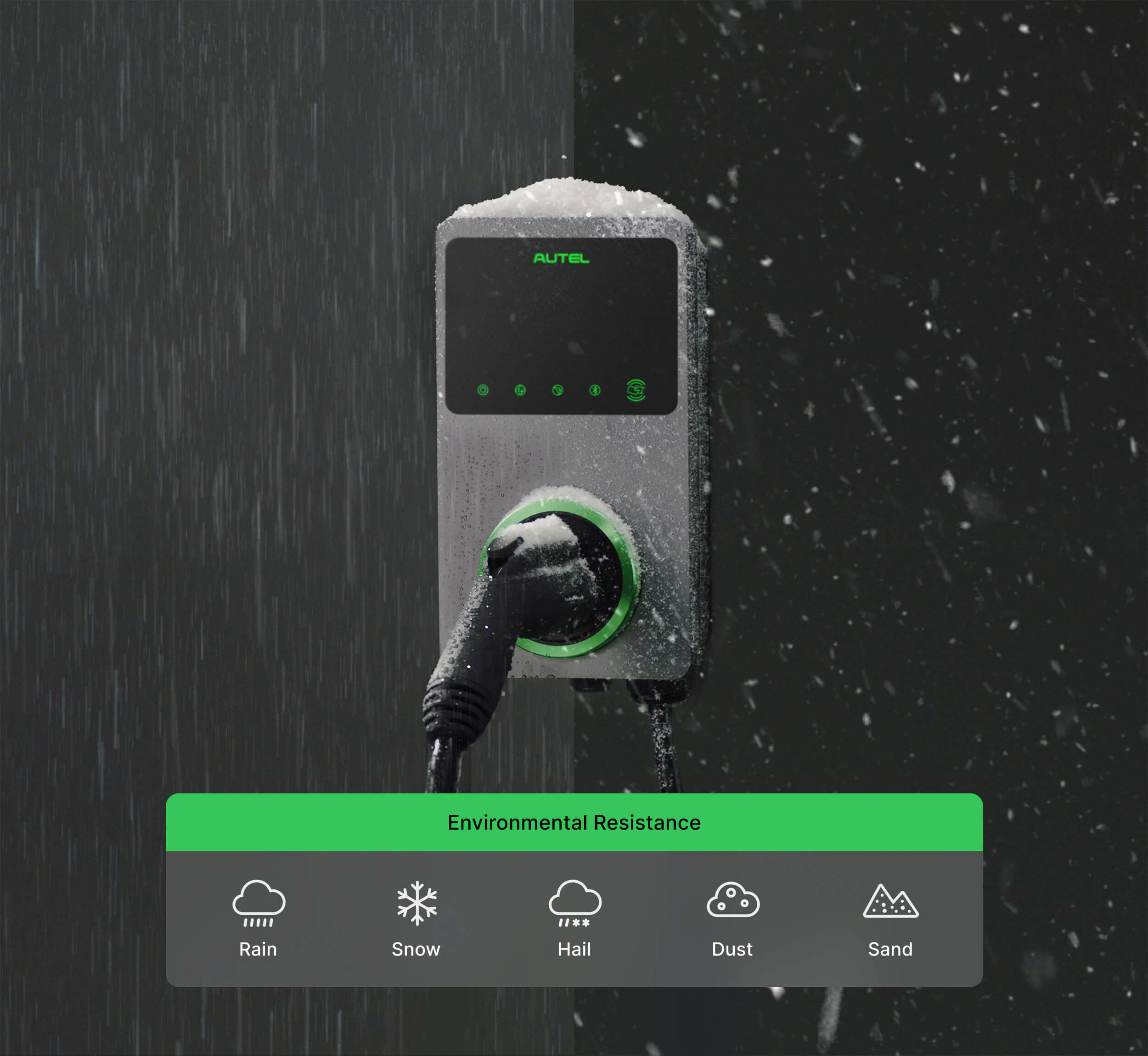

Compliant with NEMA 4X standards, ensuring robust performance in harsh outdoor conditions. Plus, the flexible 25 ft cables provide extended reach for hassle-free charging, no matter where you park!

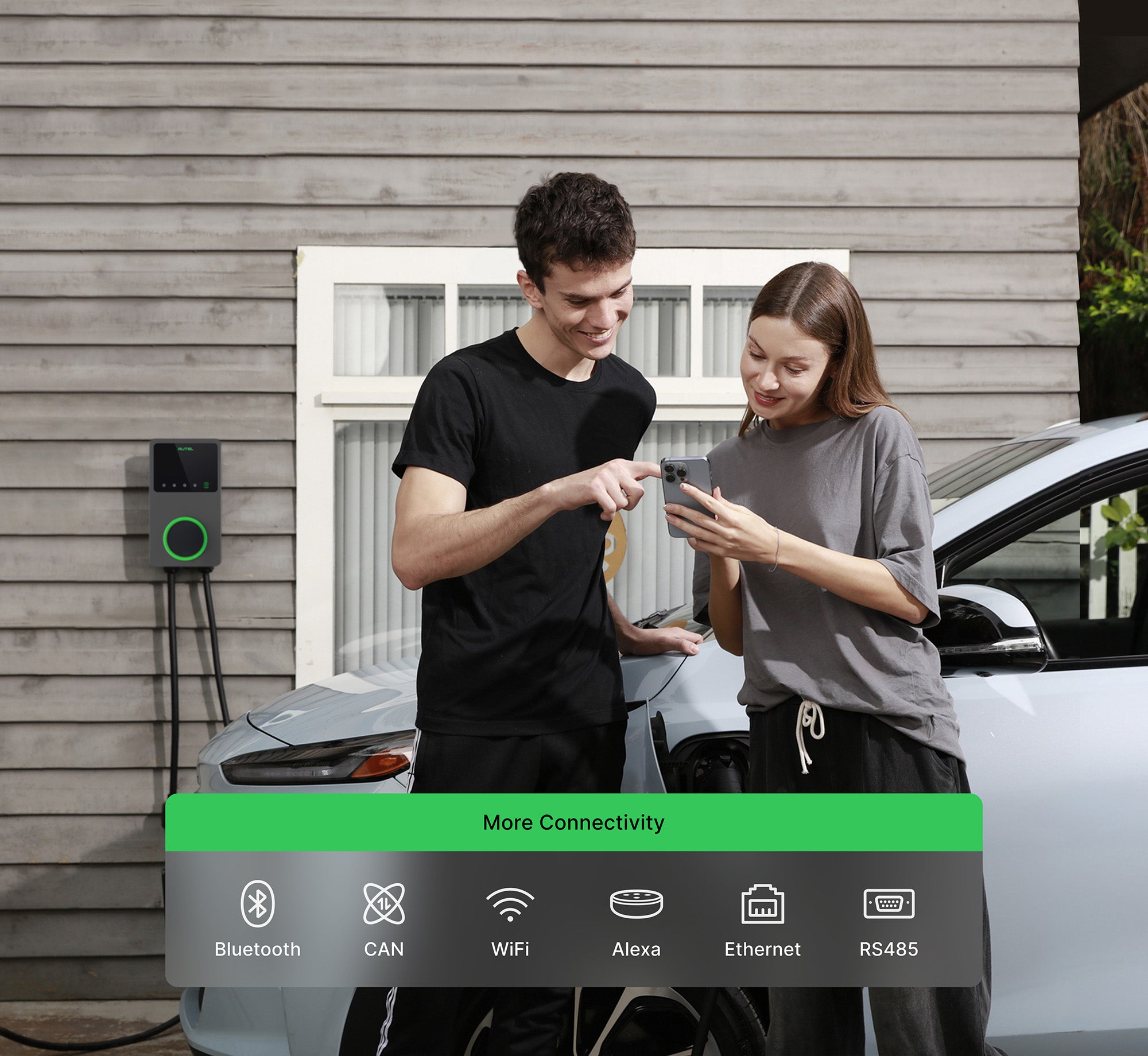

Easily connect and configure your charger via Bluetooth, WiFi, Ethernet, RS485, or CAN. Enjoy the flexibility to use the charger anytime, with or without an internet connection!

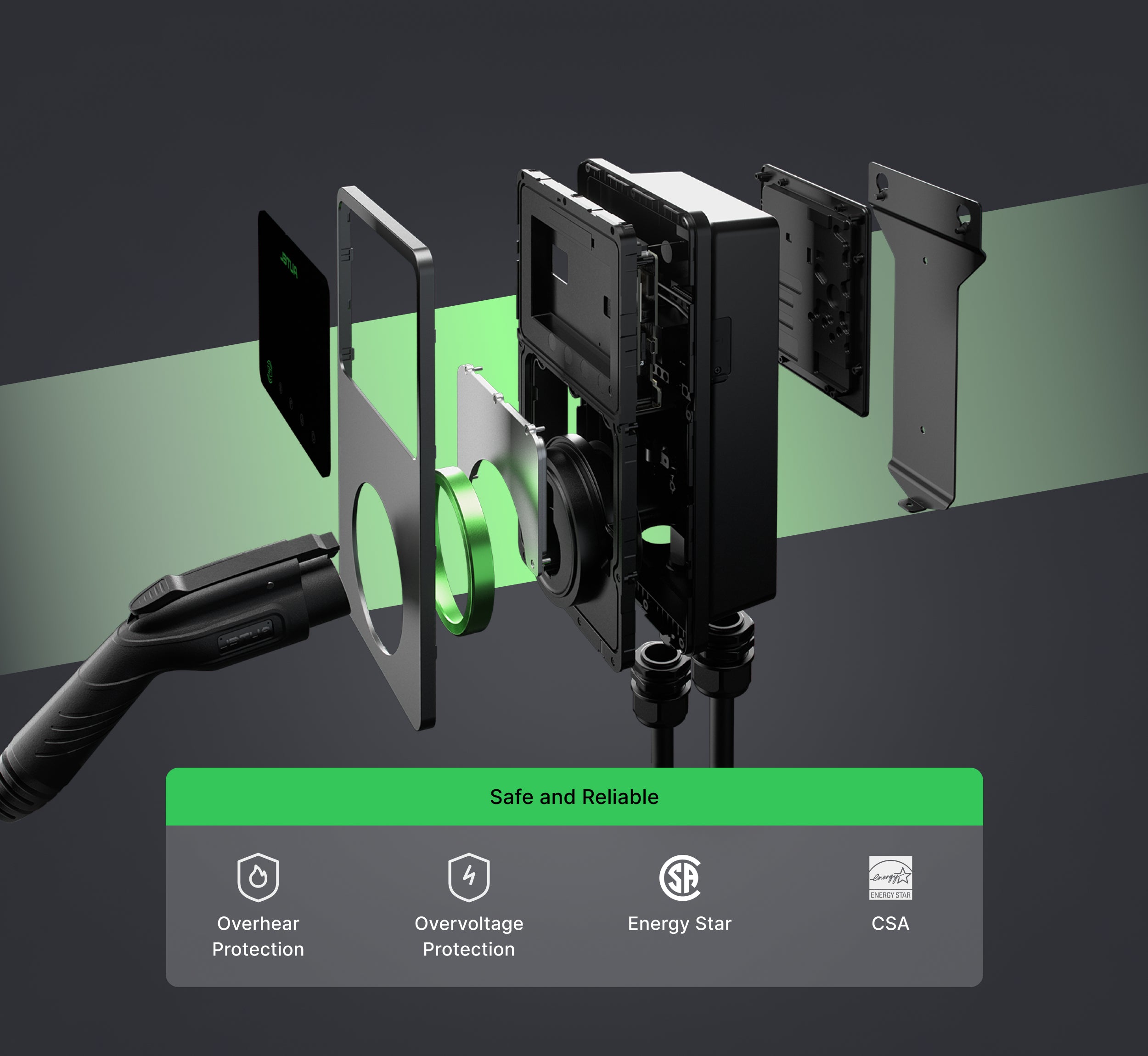

CSA certified for safety and ENERGY STAR certified for efficiency. Plus, enjoy peace of mind with a 3-year warranty and dedicated technical support.

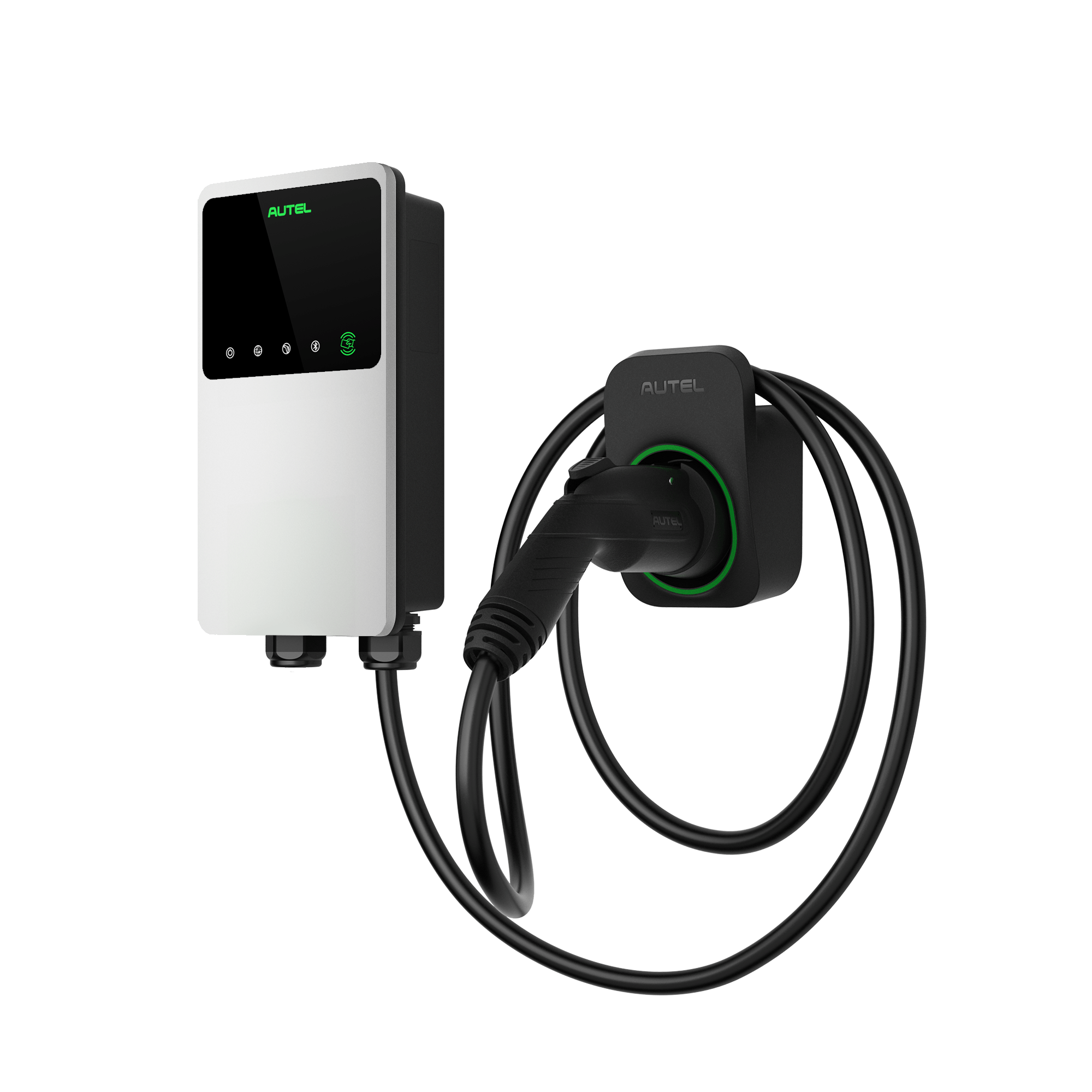

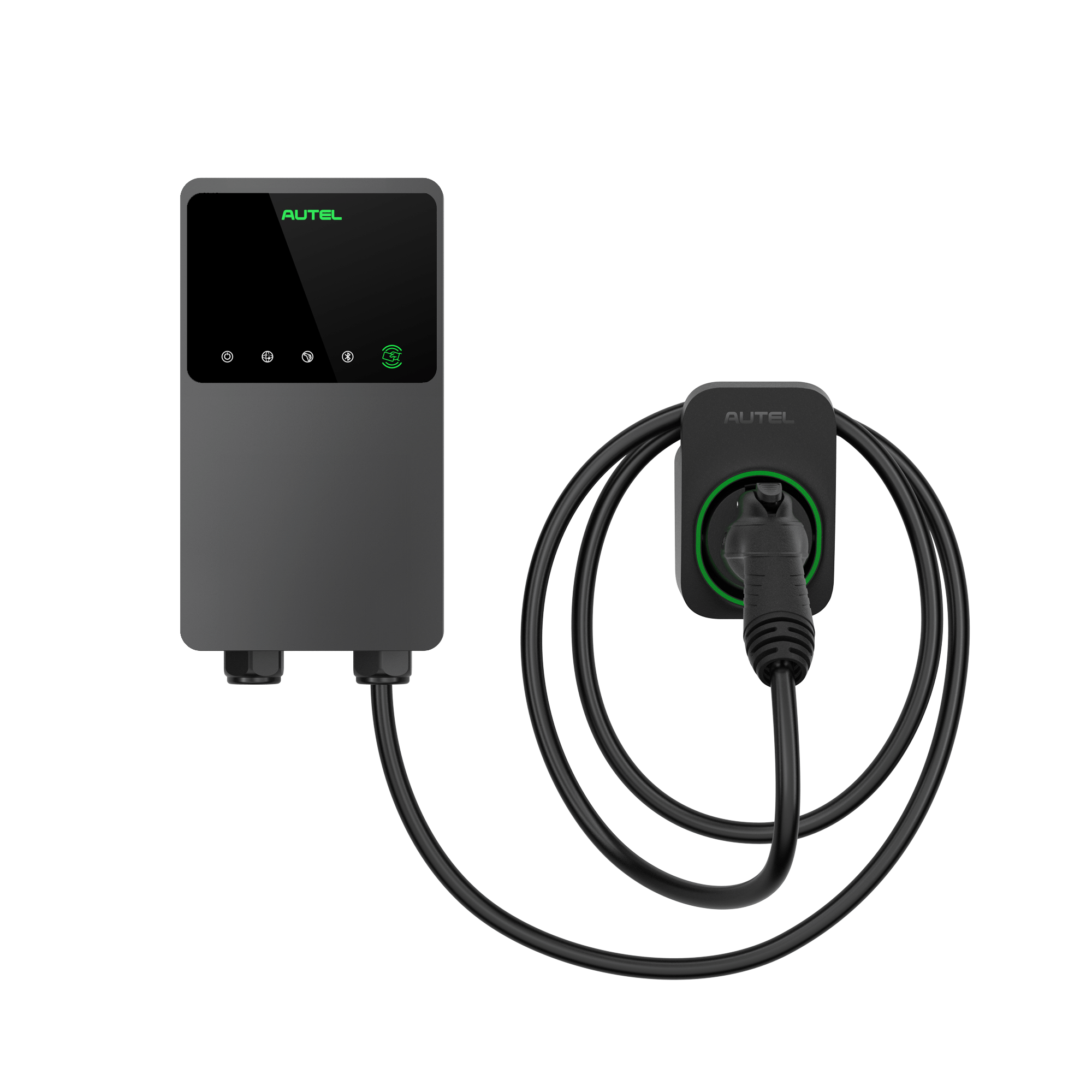

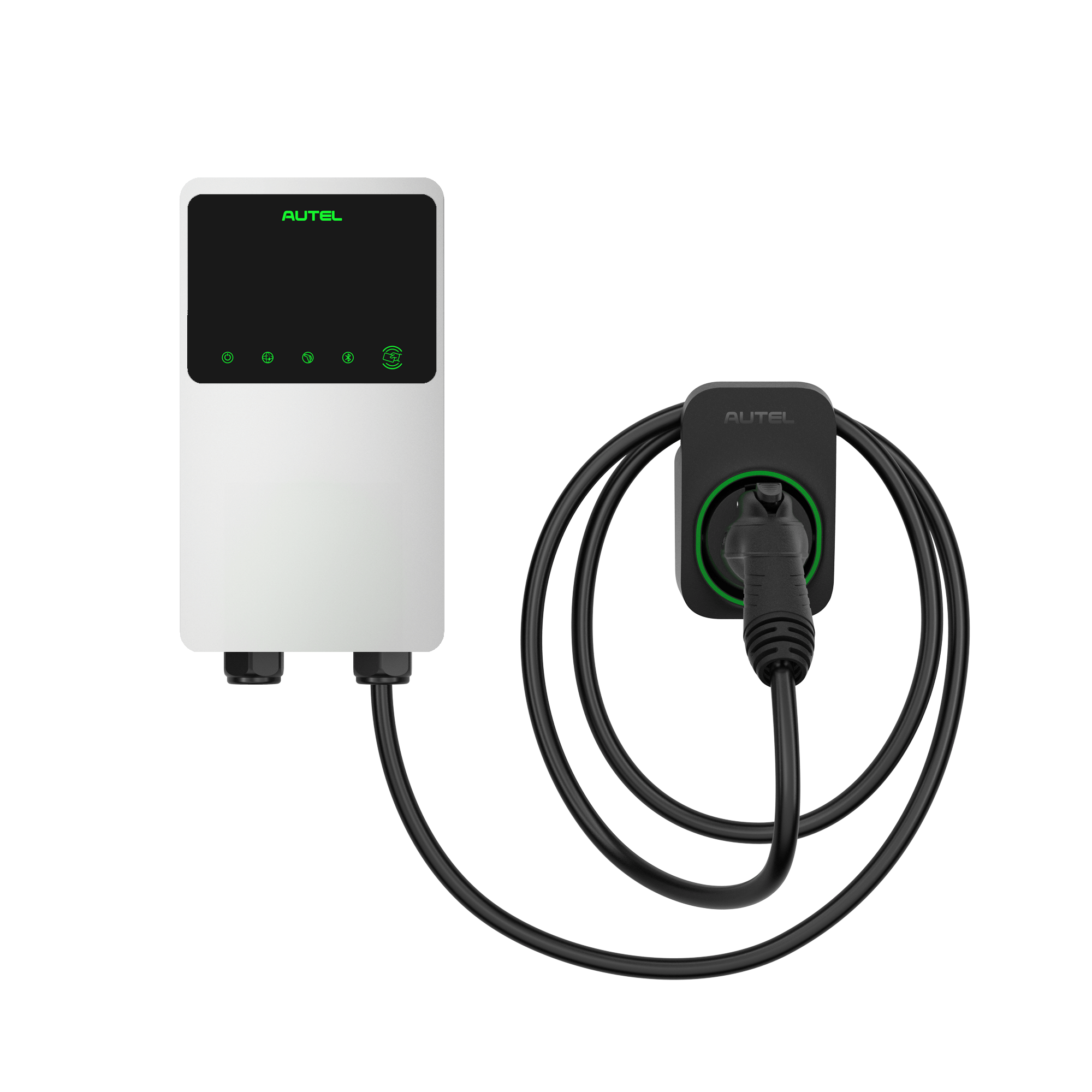

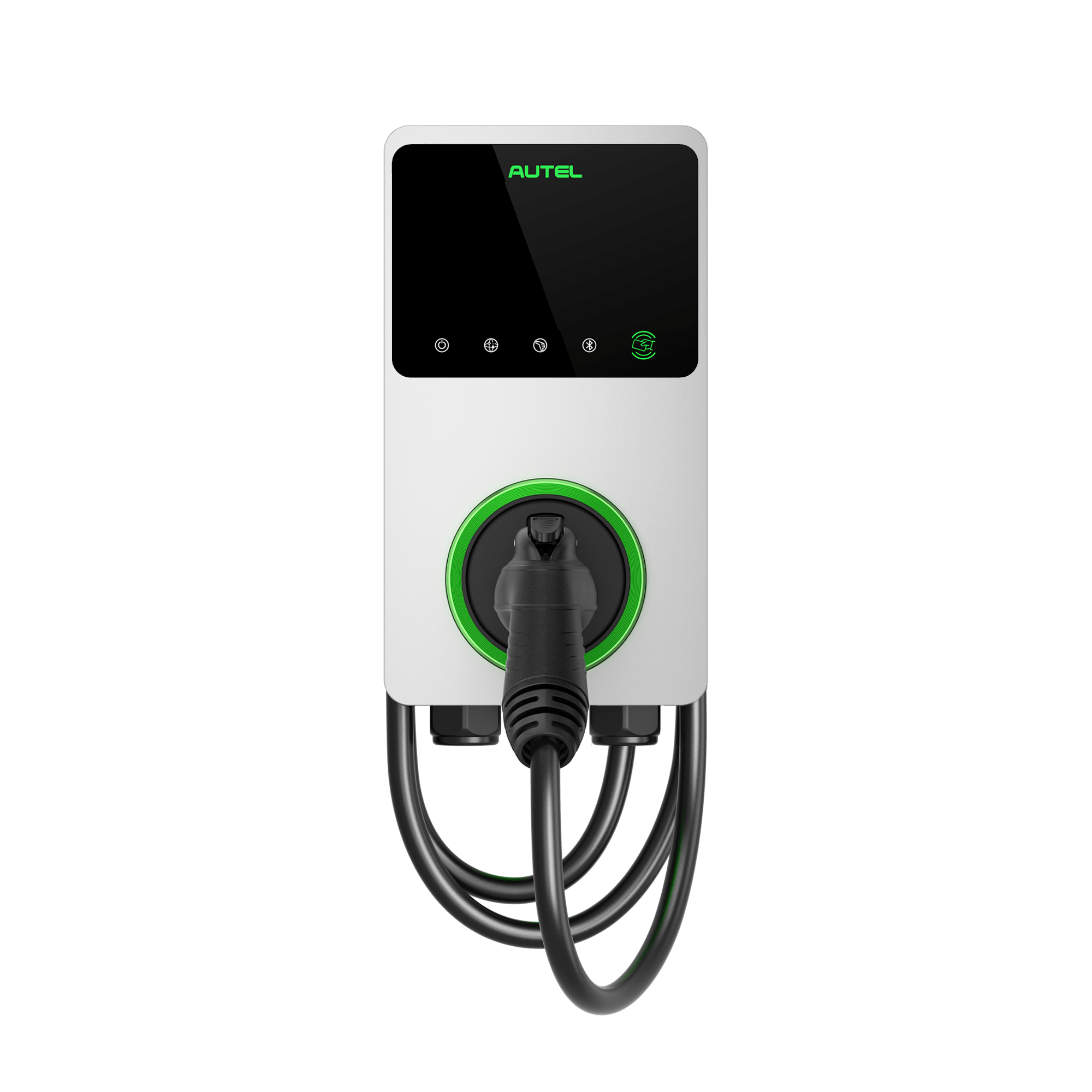

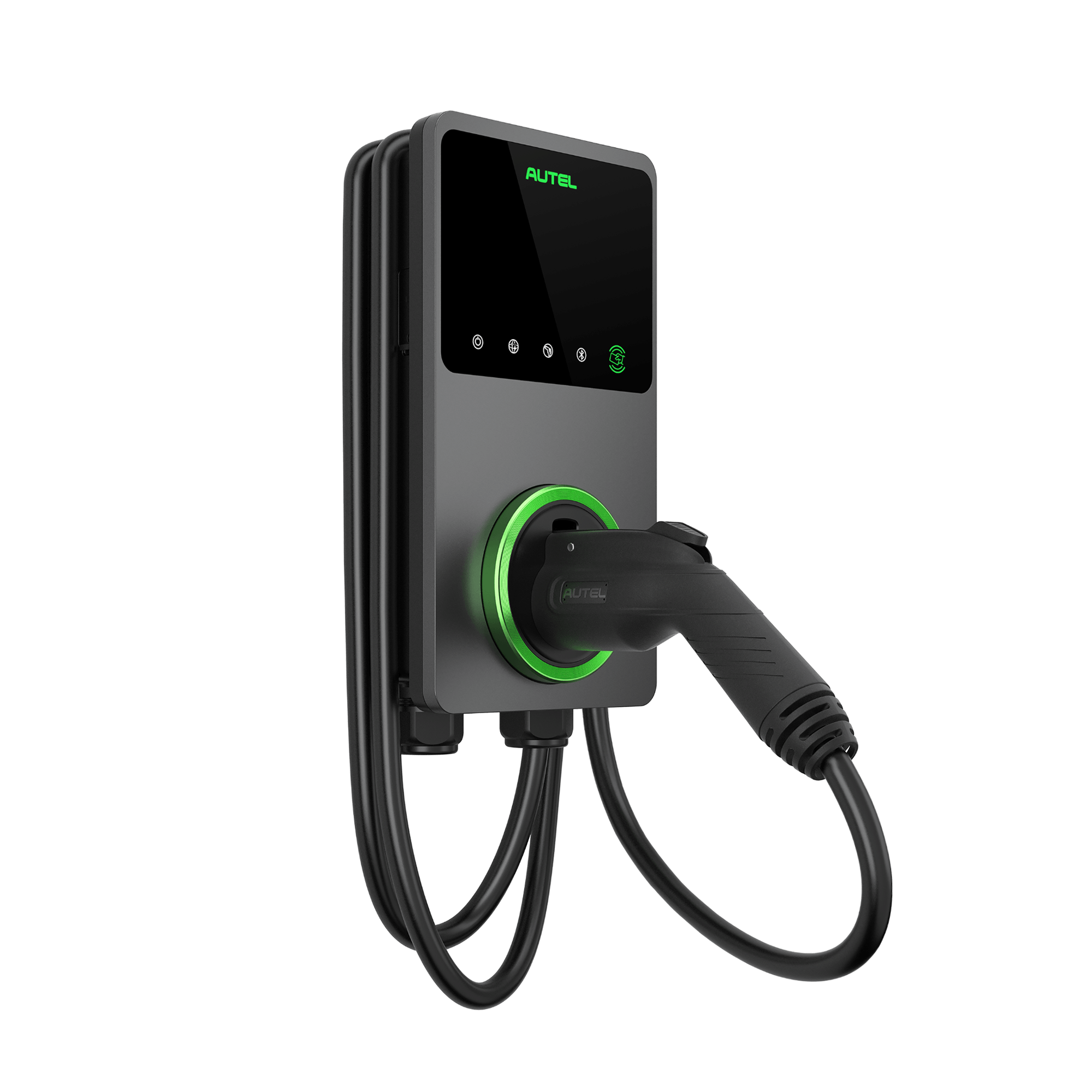

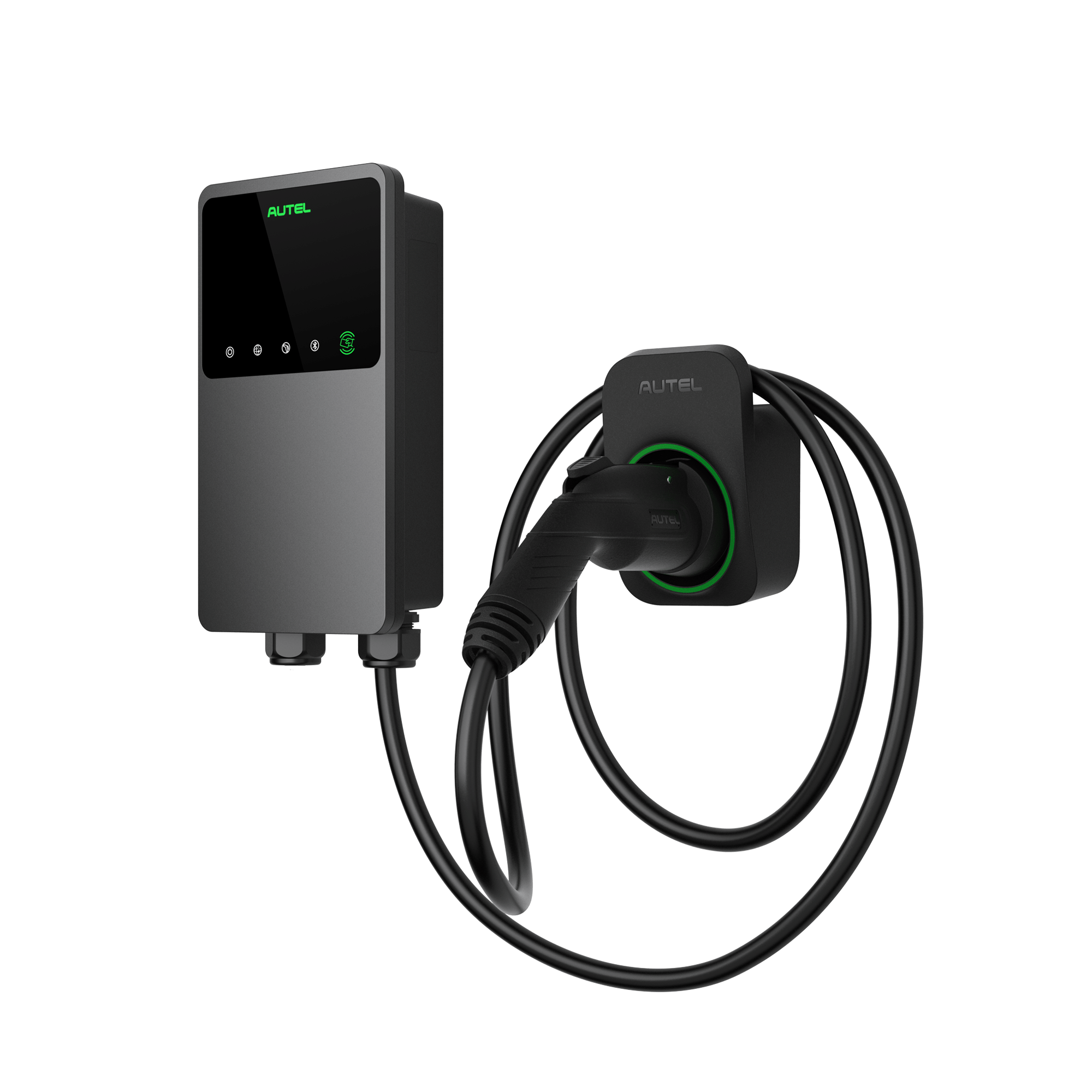

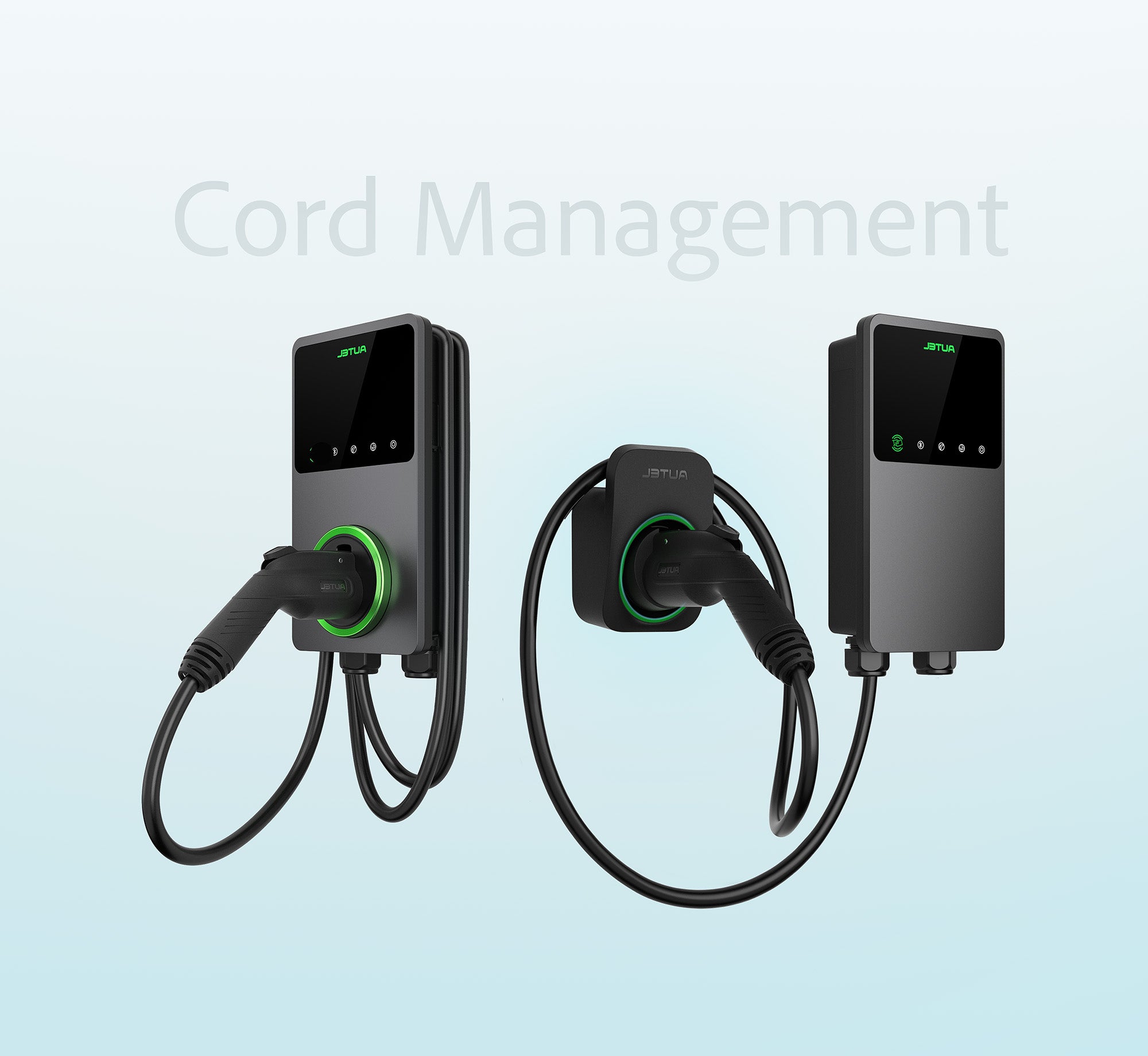

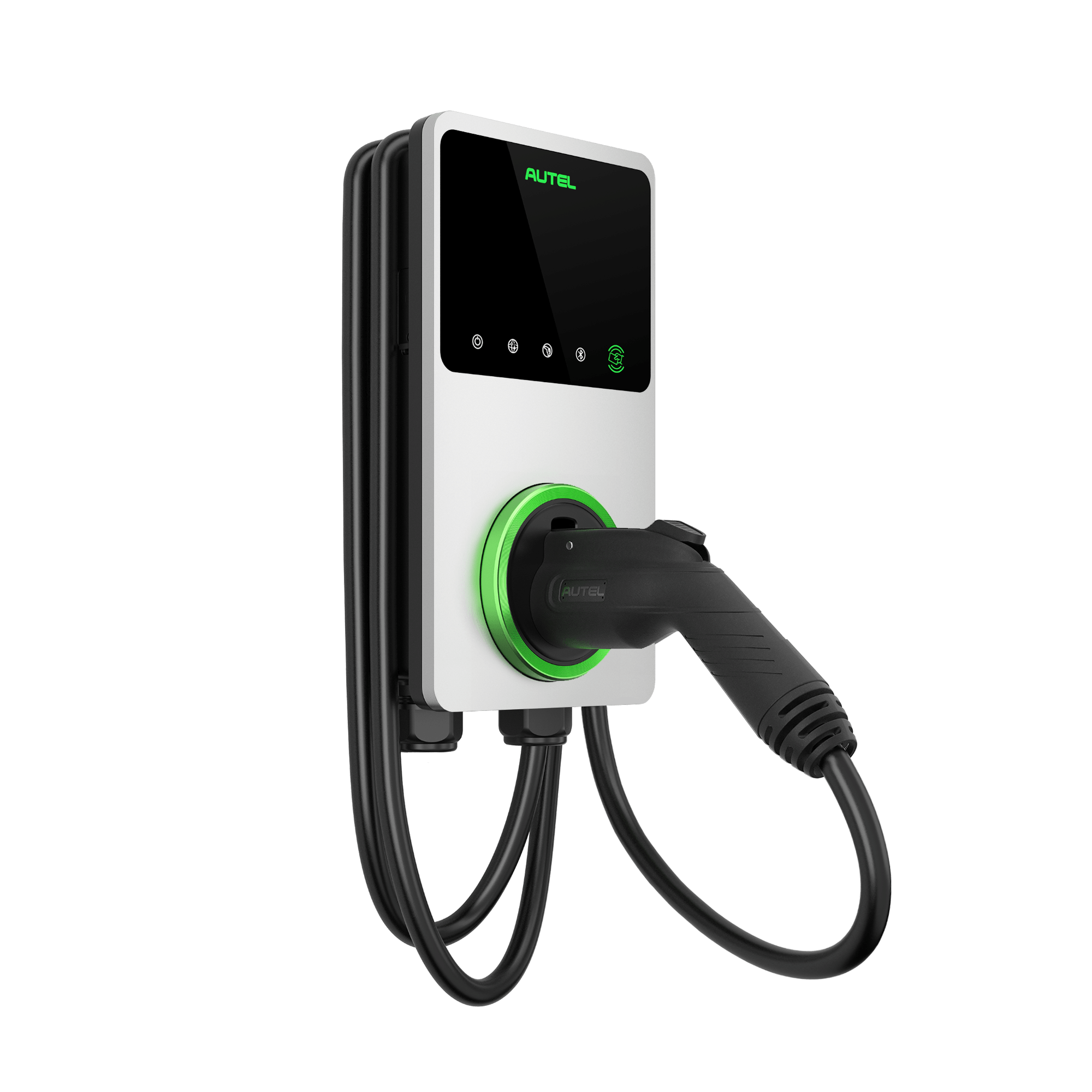

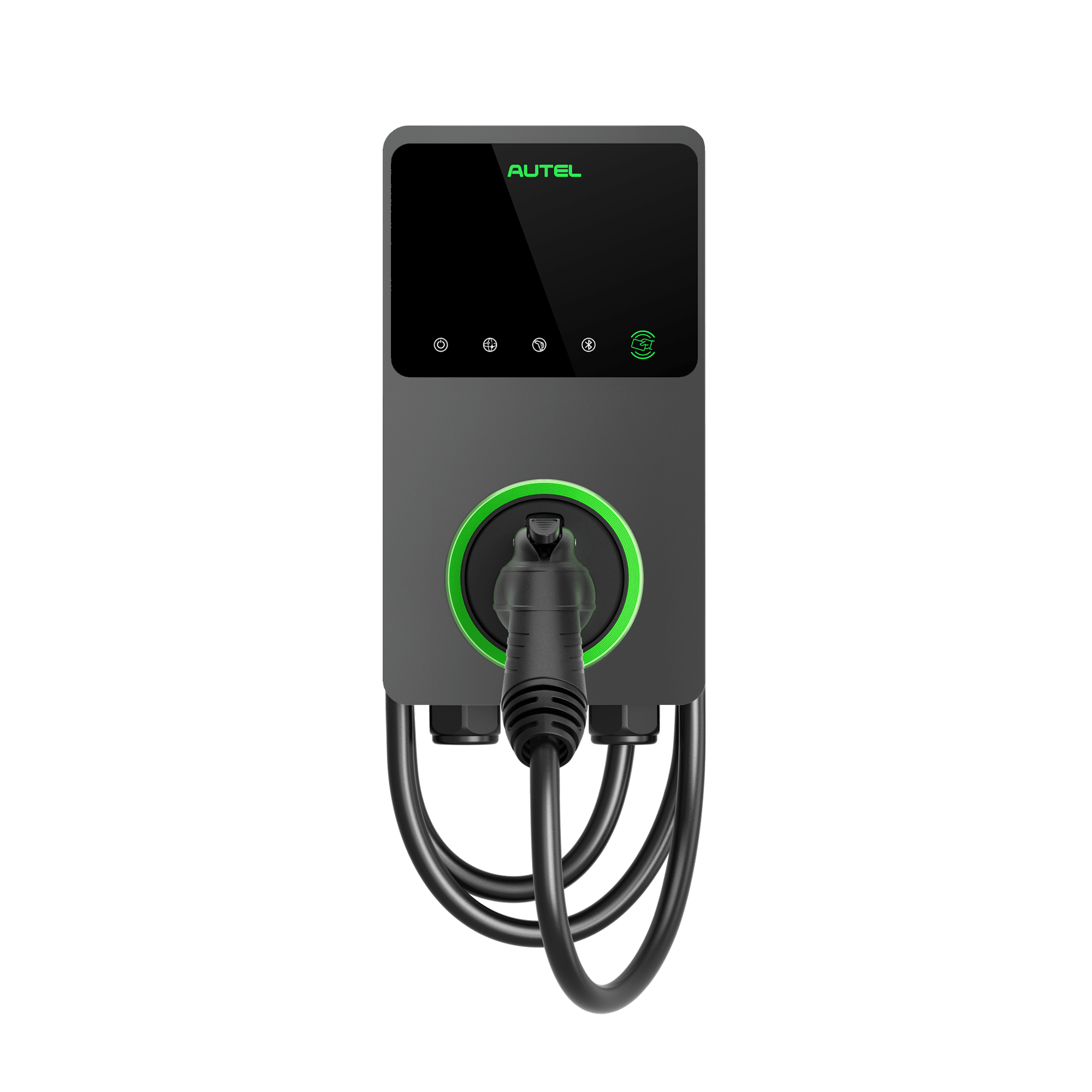

Whether you have a small garage or an open driveway, our flexible product line has a solution for your needs. With a sleek, compact design, we offer both an in-body holster or a separate charging holster to suit the space you have.
Maximize Your Charging Experience with the Autel Charge App!
Pair your MaxiCharger AC Elite with the Autel Charge App for ultimate control over your charging process. Start and stop charging, monitor real-time data, schedule charging sessions, adjust maximum amperage, and much more, all in the app.
Featured Video Show.
Product Support.
Model NumberMaxi US AC W12
Connector TypeSAE J1772
Dimensions (H*W*D)13.2” x 7.4” x 3.8” (336 x 187 x 97 mm)
Weight15.4 lbs. (7 kg).
Input cordHardwired
Warranty3 years warranty
Charging Cable Length25 ft. (7.5 m)
ConnectivityBluetooth, Wi-Fi, Ethernet, CAN, RS485
User authenticationApp, AutoStart, RFID card
Advanced FeatureAdaptive Load Management (ALM); Dynamic Load Balancing (DLB)
Output RatingMaximum 12 kW (240 VAC @ 50 A model)
Input Rating208/240 VAC, 60 Hz, single phase @ 16 A, 24 A, 32 A, 40 A, 48 A, 50 A
ProtectionOvercurrent, overvoltage, undervoltage, integrated surge protection
Operating Temperature-40 to 131 °F (-40 to 55 °C)
MountingWall-mounted or floor using a pedestal
Model NumberMaxi US AC W12-H
Connector TypeSAE J1772
Dimensions (H*W*D)13.2” x 7.4” x 3.3” (336 x 187 x 85 mm)
WeightHardwired model: about 14.8 lbs. (6.7 kg)/ NEMA plug-in model: about 15.4 lbs. (7 kg)
Input cordHardwired
Warranty3 years warranty
Charging Cable Length25 ft. (7.5 m)
ConnectivityBluetooth, Wi-Fi, Ethernet, CAN, RS485
User authenticationApp, AutoStart, RFID card
Advanced FeatureAdaptive Load Management (ALM); Dynamic Load Balancing (DLB)
Output RatingMaximum 12 kW (240 VAC @ 50 A model)
Input Rating208/240 VAC, 60 Hz, single phase @ 16 A, 24 A, 32 A, 40 A, 48 A, 50 A
ProtectionOvercurrent, overvoltage, undervoltage, integrated surge protection
Operating Temperature-40 to 131 °F (-40 to 55 °C)
MountingWall-mounted or floor using a pedestal
(888)272-0090
customerservice@qmerit.com
Can this 50 Amp car charger power my vehicle?
Yes, our Autel Maxicharger works with all electric and plug-in hybrid vehicles, making it a versatile accessory for a variety of models.
Does the charger come with the RFID cards?
Our EV charger does not include RFID cards in the shipping package. If you require RFID cards for specific functionalities or access control, you can purchase them separately. Thank you!
What is the difference between Lite 50A charger and Elite 50A charger?
Both the Elite 50A and Lite 50A Chargers offer efficient, smart charging. The Elite adds a separate holster for added flexibility. The Lite, ideal for home use, provides straightforward, reliable charging for all EV users.
Is this product eligible for the Quebec (QC) rebate of $600 CAD?
Yes! We are pleased to confirm that our Lite Model Level 2 EV Charger is now eligible for the QC rebate program. After purchasing and installing the charger, you are able to apply for the rebate directly through the program and receive 600 CAD back.

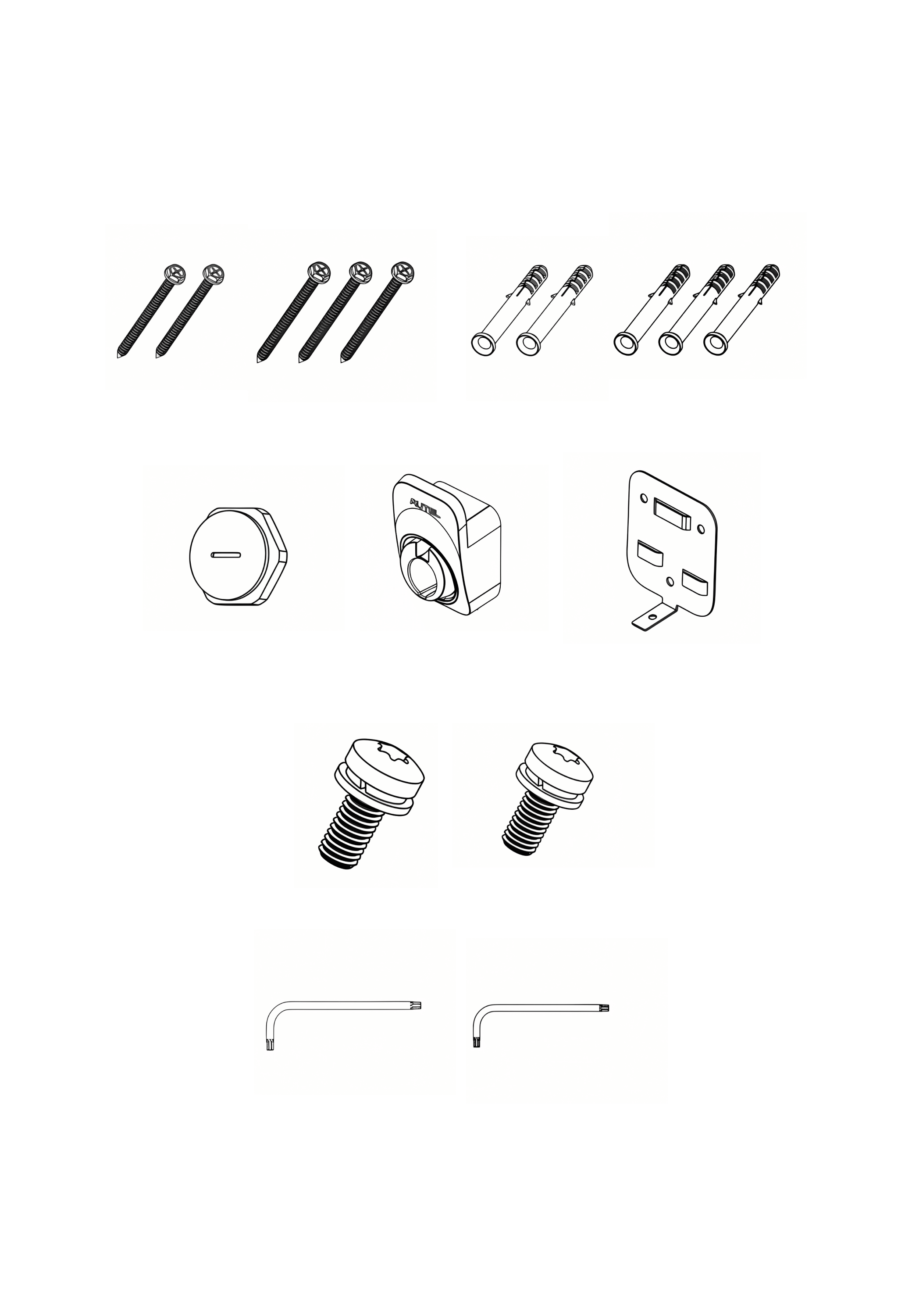

What’s in box.
Customer Reviews
Liked solid build for EVSE, clear instructions for hardwire including torque level for wire connectors. Would have preferred a metal tab instead of plastic on the charger handle and a more pliable cable jacket for winter even though Autel improved cable for cold weather, it could still be better.
Not installed yet..! I may let you know later!
The best EV charger of all time.
wow design for 2025 :-)
Thank you! We're thrilled that you love the design . Your feedback means a lot to us!
