Rated By CNET and InsideEVs
Reliable Charging Powered by Intelligence

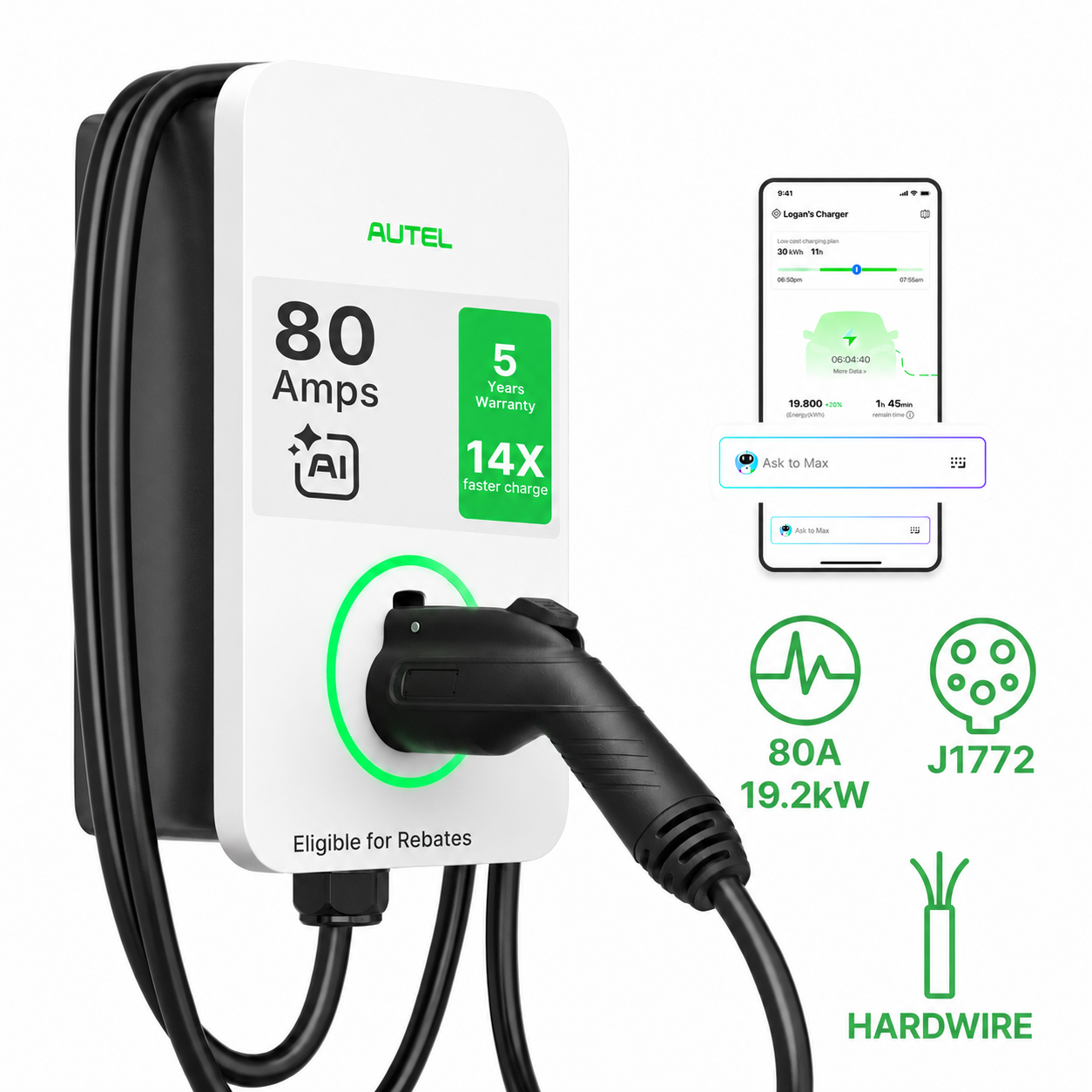

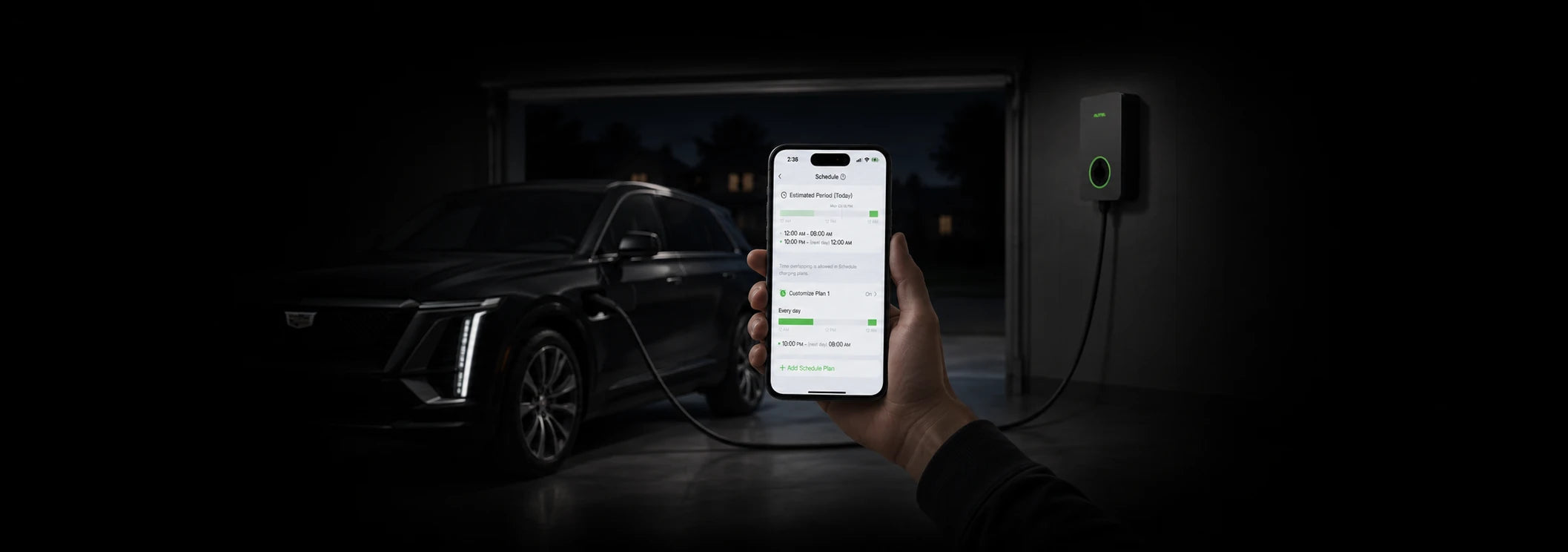

Easily track, manage, and optimize your EV charging at your location with the Autel mobile app. Start, stop, and schedule charging remotely. Control your smart home charging unit through the MaxiCharge app and receive notifications when your car is fully charged. Monitor your EV battery health while charging for a complete overview.
Input/Output Power Rating and
Current

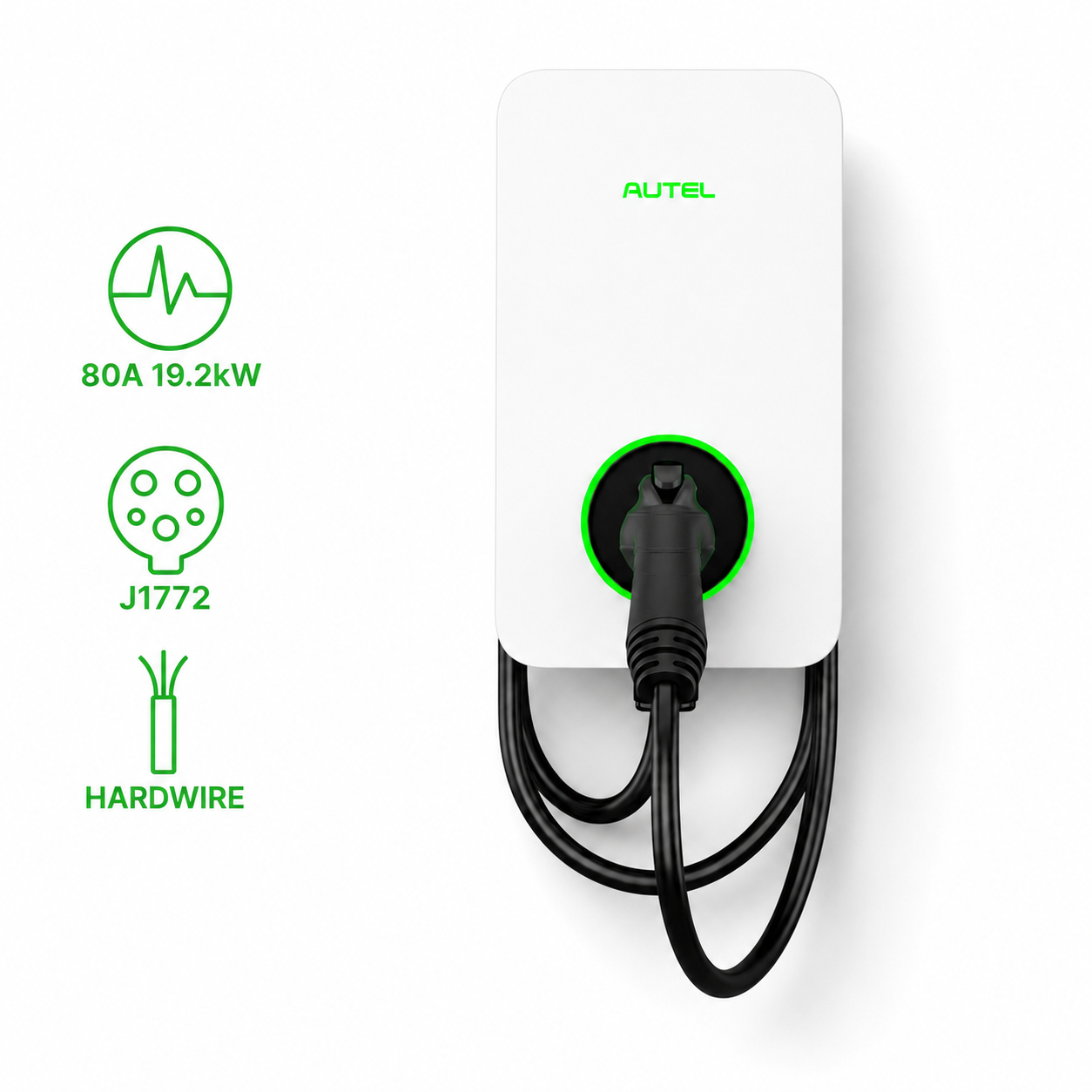

19.2kW (240V AC 80A)
Output amperage adjustable via mobile app, from 6A to 80A, support 16A, 24A, 32A, 40A, 48A, 50A, 64A, 72A, 80A via the DIP switch
Input/Output Voltage
208/240V AC 50/60Hz

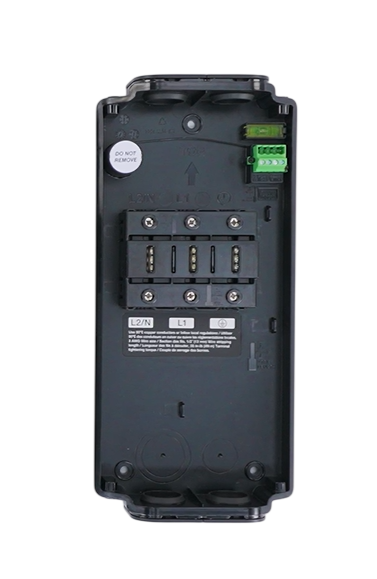

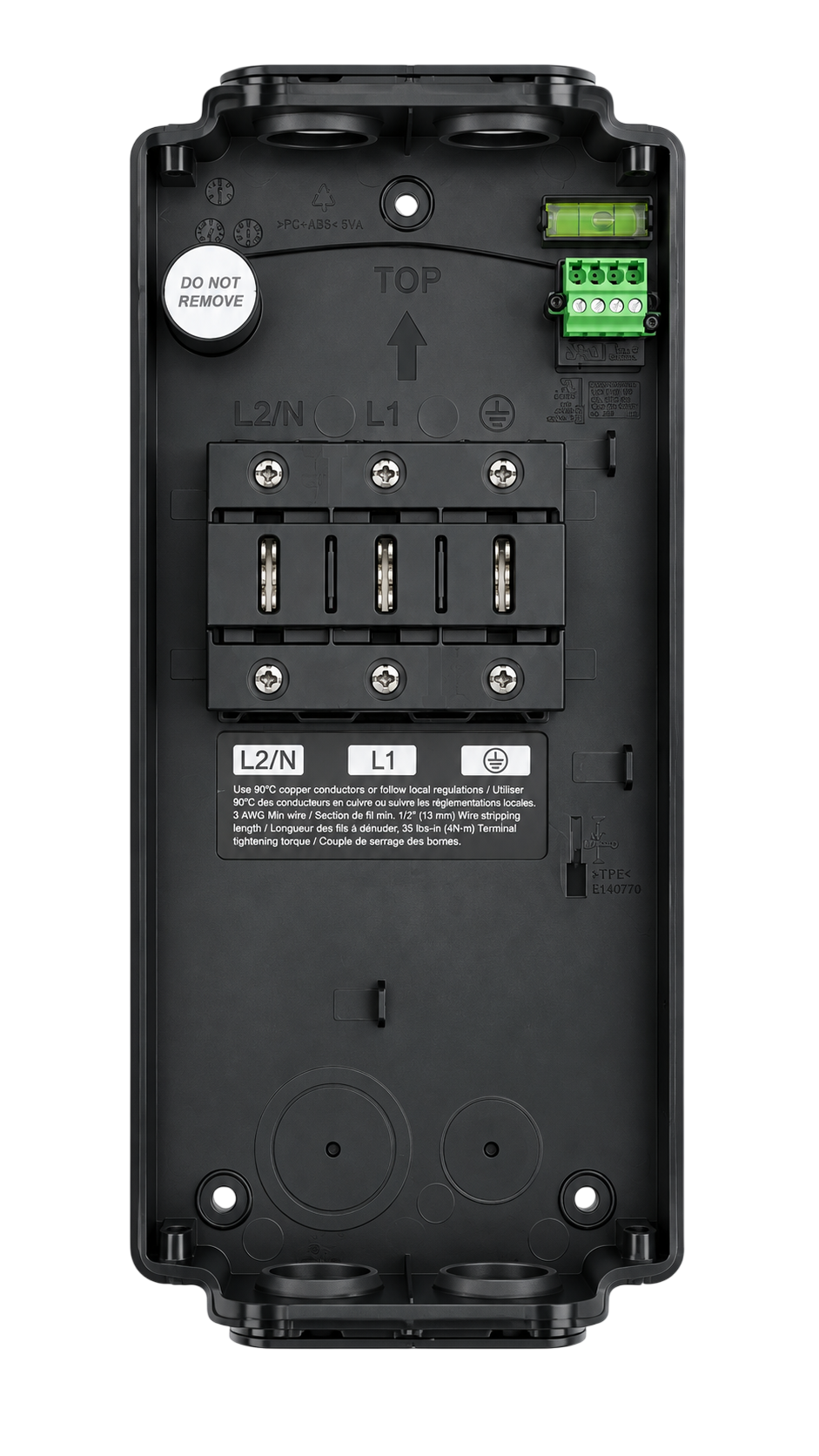

Input Power Connections
L1, L2, input power connections and Earth Ground, support high-leg delta wiring configuration
Input Cord
Hardwired

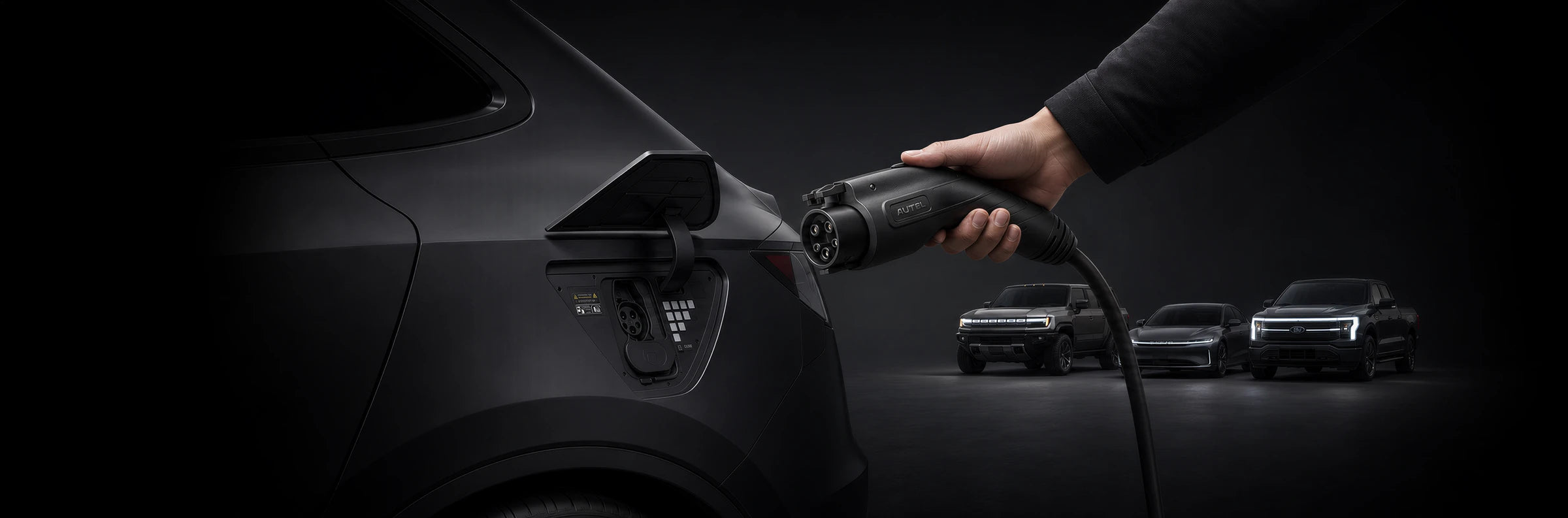

Connector Type
SAE J1772Charging Cable Length
25 ft. (7.5 m)
Ground Fault Detection
20 mA CCIDProtection
Overcurrent, overvoltage, undervoltage,
overtemperature,
integrated surge protection
Connectivity
4G、Wi-Fi、Ethernet、RS485 (Modbus, expand smart energy meter, etc.)、Wi-SUN
Card Reader
ISO 15693, ISO 14443 A/B, ISO 18092
User Interface
Autel Charge APP; Autel Charge Cloud
Communication Protocols
OCPP 1.6J, OCPP 2.0.1

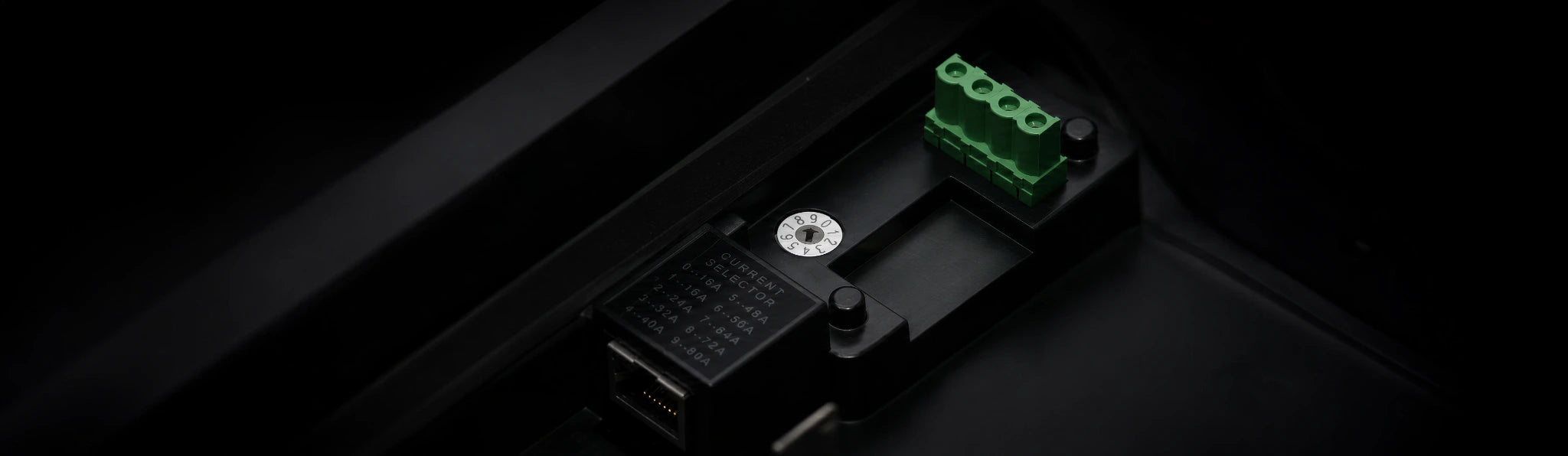

Current Control Method
App, hardware DIP switch (Dial)Dimensions (H x W x D)
14.5” x 8.5” x 5.1” (368 x 216 x 130 mm)
Package
Weight
approx. 20.3 lbs. (9.2 kg)
Safety Standards
UL 2594, UL2231-1, UL2231-2, UL 1998, CSA C22.2.NO.280
Codes and Standards
FCC Part 15 Class B, ENERGY STAR, OpenADR 2.0b, NEC Article 625
Warranty
5 years: the charger body, backplate and all internal
components
1 year: the display screen, charging cable and connector
