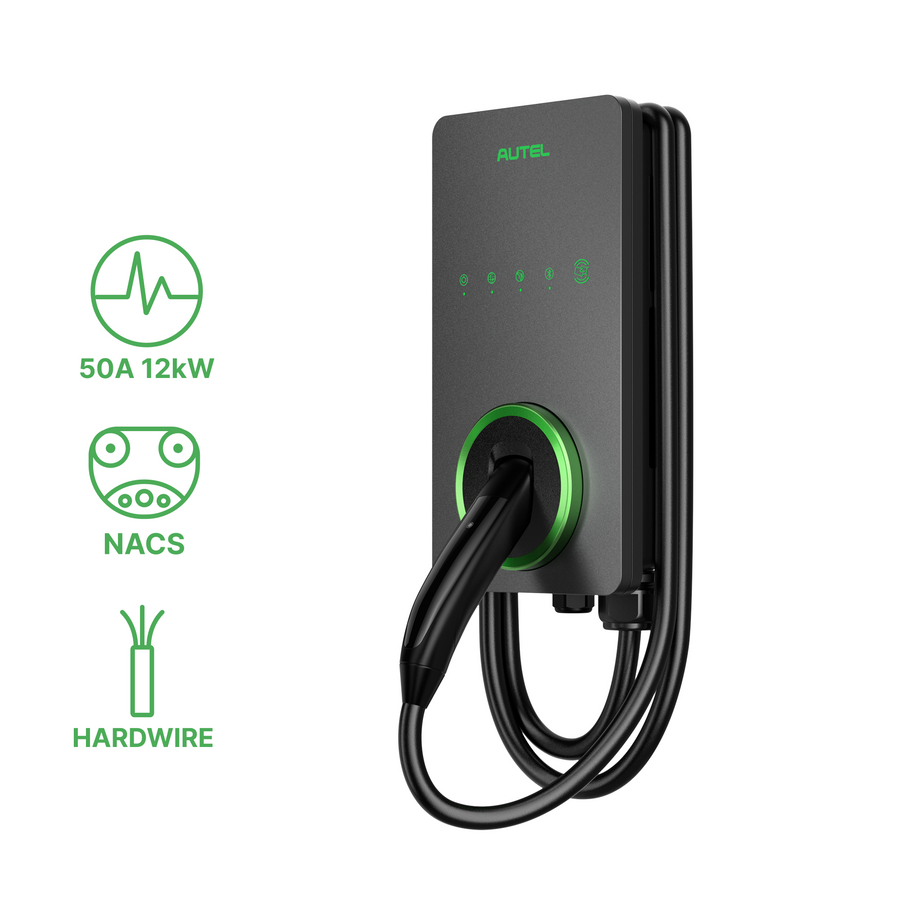

AC Lite Home 50A 12kW EV Charger | CA

Best EV Chargers 2024

Rated By CNET and InsideEVs

Level 2 Hardwired NACS 25 ft Cable

Specifications

Description

50A / 12KW FAST HOME CHARGING: Delivers up to 12kW of Level 2 charging power at 240V and charges your EV up to 9× faster than a Level 1 charger. Adjust charging current from 6A to 50A through the Autel Charge App to match your home electrical setup and everyday charging needs.

NATIVE NACS WITH 25 FT CABLE: Connect directly to NACS-equipped EVs with no J1772 adapter required. The 25 ft charging cable provides flexible reach across garages, driveways and different parking positions for convenient everyday home charging.

ALM & DLB LOAD MANAGEMENT: Supports both Adaptive Load Management (ALM) and charger-to-charger Dynamic Load Balancing (DLB) for more flexible home energy management. ALM requires compatible additional hardware, while DLB works between chargers without additional hardware.

SMART APP CONTROL & RFID ACCESS: Start, stop and schedule charging with the Autel Charge App, adjust charging current, receive charging notifications and review charging activity. AutoStart makes everyday charging simple, while optional RFID card access helps prevent unauthorized use. RFID cards are sold separately.

ALL-WEATHER PROTECTION & 3-YEAR WARRANTY: Built for indoor and outdoor charging with an IP65 / NEMA 4X enclosure and an operating temperature range from -40°F to 131°F. Integrated protection includes overcurrent, overvoltage, undervoltage and surge protection, with CSA and ENERGY STAR certifications for added confidence. Backed by a 3-year warranty.

Connector Type -

NACS (Tesla EV)

J1772 (Non-Tesla EV) J1772 (Non Tesla EV)

NACS (Tesla EV) NACS

Color -

Dark Gray

Silver Wood Grain Dark Gray Sierra Blue

Variant

Quantity

$780.00 CAD

$899.00 CAD

13% OFF

Save $80 at $1,400+ Save $80 at $1,400+ Save $120 at $2,000+ Save $120 at $2,000+

Free Shipping
30-Day Returns
3-Year Warranty
Secure Checkout

Rebates & Charging Rewards

✓ Eligible

View Detail

Québec Est. $180.00 after $600 Écorecharge B.C. rebates available

Roulez Électrique Up to 13¢/kWh ChargeLab 10¢/kWh

Pairs well with

Autel RFID Charge Card - 2 Pack

$55.90

Details

Total $0.00 CAD

$780.00

13% OFF

POWERFUL CHARGING. RIGHT AT HOME.

Autel AC Lite 50A charger with its cable and J1772 connector against a dark background

MAX CURRENT: 50 A
CABLE LENGTH: 25 ft
ADJUSTABLE: 16–50 A
WARRANTY: 3 YEARS

UP TO 12KW HOME CHARGING

Charge at up to 50A (240V), with a 25 ft cable for flexible reach in your garage or driveway.

A hand holding a J1772 connector beside a vehicle charging port

WIDE EV/PHEV COMPATIBILITY

Compatible with J1772-equipped EVs and PHEVs across North America. Plug in directly, or use a compatible J1772-to-NACS AC adapter (not included) for supported NACS vehicles.

A phone showing charging schedules beside an AC Lite charger and vehicle

MORE THAN SCHEDULING

Connect via Wi-Fi, Bluetooth or Ethernet. Manage charging, share access with your family, and keep your charger up to date with OTA firmware updates.

Monitor Your Charging: See charging status, power and energy use at a glance.
Track Your Usage: Review charging sessions and estimated costs.
Adjust Your Current: Set the charging current to suit your everyday needs.
Set Your Schedule: Choose when charging starts and stops.

Optional RFID cards help control who can use your charger. Cards sold separately.

App screens are for illustration. Available settings may vary.

Electricity rate chart highlighting lower-rate charging periods beside a home and EV

CHARGE WHEN RATES ARE LOWER

Schedule charging in the Autel Charge App to take advantage of off-peak rates and help lower your electricity bill.

AC Lite mounted outdoors with snow on its enclosure

BUILT FOR LIFE OUTSIDE

Built for indoor and outdoor charging, with a NEMA 4X-rated enclosure that helps protect against rain, dust and corrosion. The cable stays flexible in cold weather for easier handling.

Exploded view of AC Lite highlighting its internal CCID protection

PROTECTION BUILT IN

Built-in ground-fault, short-circuit and overtemperature protection help safeguard every charge. Backed by a 3-year warranty and dedicated technical support.

Product Support

Product Specifications

Charging

Maximum output: Maximum 12 kW (240 VAC @ 50 A model)

Input rating: 208/240 VAC, 60 Hz, single phase @ 16 A, 24 A, 32 A, 40 A, 48 A, 50 A

Standby energy consumption: ≤0.2 kWh/day

Connector and Cable

Vehicle connector: SAE J1772

Cable length: 25 ft. (7.5 m)

Installation

Installation type: Hardwired

Mounting: Wall-mounted or floor using a pedestal

Circuit breaker options: 20, 30, 40, 50, 60 or 70 A. Size at 125% of the maximum load (e.g., a 50 A breaker for 40 A output).

Input wiring: L1, L2 and PE (Earth); no neutral required.

Connectivity

Connections: Bluetooth, Wi-Fi, Ethernet, RS485

User authentication: App, AutoStart, RFID card

Protection

Electrical protection: Ground-fault, overcurrent, overvoltage, undervoltage, overtemperature, short-circuit and surge protection

Ground-fault detection: 20 mA CCID with auto retry

Operating temperature: -40 to 131 °F (-40 to 55 °C)

Dimensions

Dimensions (H × W × D): 13.2” x 7.4” x 3.8” (336 x 187 x 97 mm)

Weight: 14.8 lbs (6.7 kg)

Model and Warranty

Model number: Maxi US AC LW12

Warranty: 3 years warranty

Certifications & Design Awards

Installation

User Manual Download

For installation instructions, we are here to assist you. Learn More

Get An installation Quote

Across North America, Qmerit Charge@Home" installation services deliver the highest levels of safety and quality at competitive pricing.lt starts with an upfront pricing estimate. For most home configurations, all you need to do is give us some information about your layout and electrical panel

(888)272-0090

customerservice@qmerit.com

FAQ

How do I know if this product qualifies for a Canadian rebate?

Please visit our page https://store.autelenergy.com/en-ca/pages/local-incentives to see if you qualify for up to $1,000 in incentives.

Can this 50 amp car charger power my EV?

Yes, our Autel Maxicharger works with all electric and plug-in hybrid vehicles, making it a versatile accessory for a variety of models.

Does the charger come with the RFID cards?

Our EV charger does not include RFID cards in the shipping package. If you require RFID cards for specific functionalities or access control, you can purchase them separately. Thank you!

What is the difference between Lite 50A charger and Elite 50A charger?

Both the Elite 50A and Lite 50A Chargers offer efficient, smart charging. The Elite adds a separate holster for added flexibility. The Lite, ideal for home use, provides straightforward, reliable charging for all EV users.
