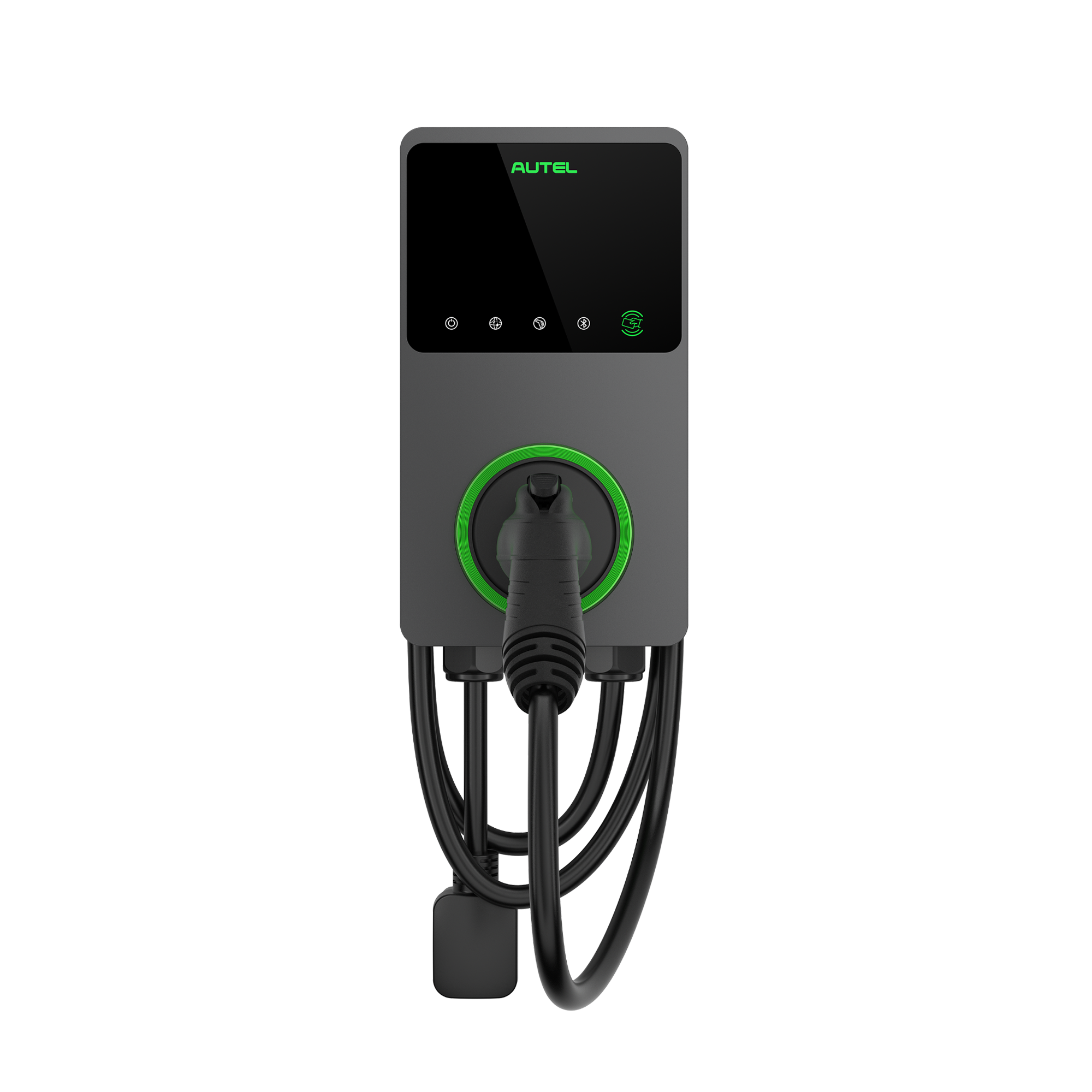

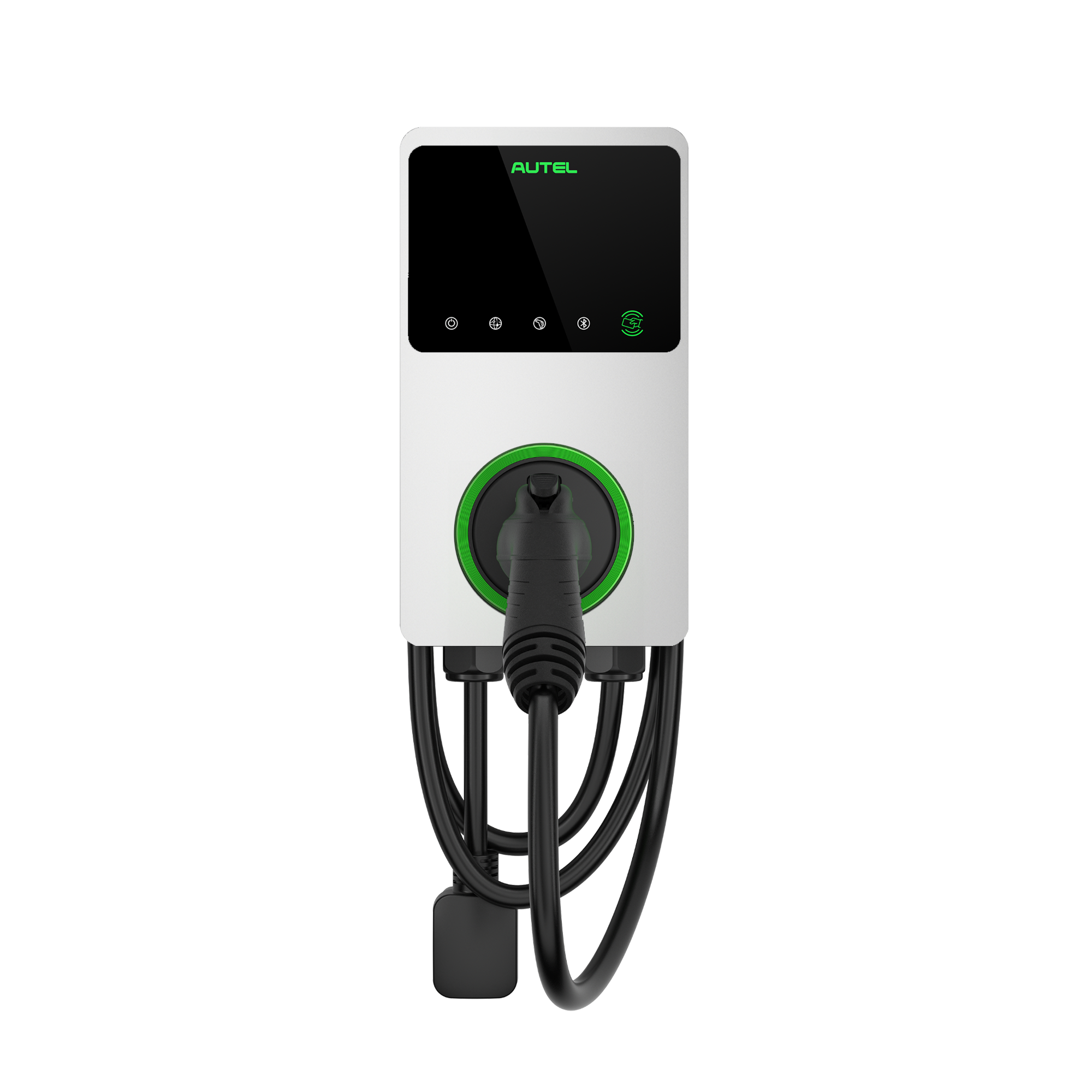

Chargeur Autel MaxiCharger AC Elite Home 40A EV
Key Features
- Compatible with All EVs.
- 40A, 9.6kW for Fast Charging
- Connect via Bluetooth/Wi-Fi/Ethernet
- Easy to Control, Manage and Schedule charging via App
- 25ft Cable Length for Flexible and Convenient Charging
Free Shipping
30-Day Free Return and 3-Year Warranty
- Overview
- Tech Specs
MaxiCharger AC Elite EV Charger
Enjoy fast and smart charging with Autel Level 2 EV charger at home
Take a More Thorough Look
Explore More Possibilities with Our EV Charger
Discover the multiple scenarios for using our charging stations. Whether at home, work, or travel, our charging solutions adapt to your needs for a seamless charging experience.

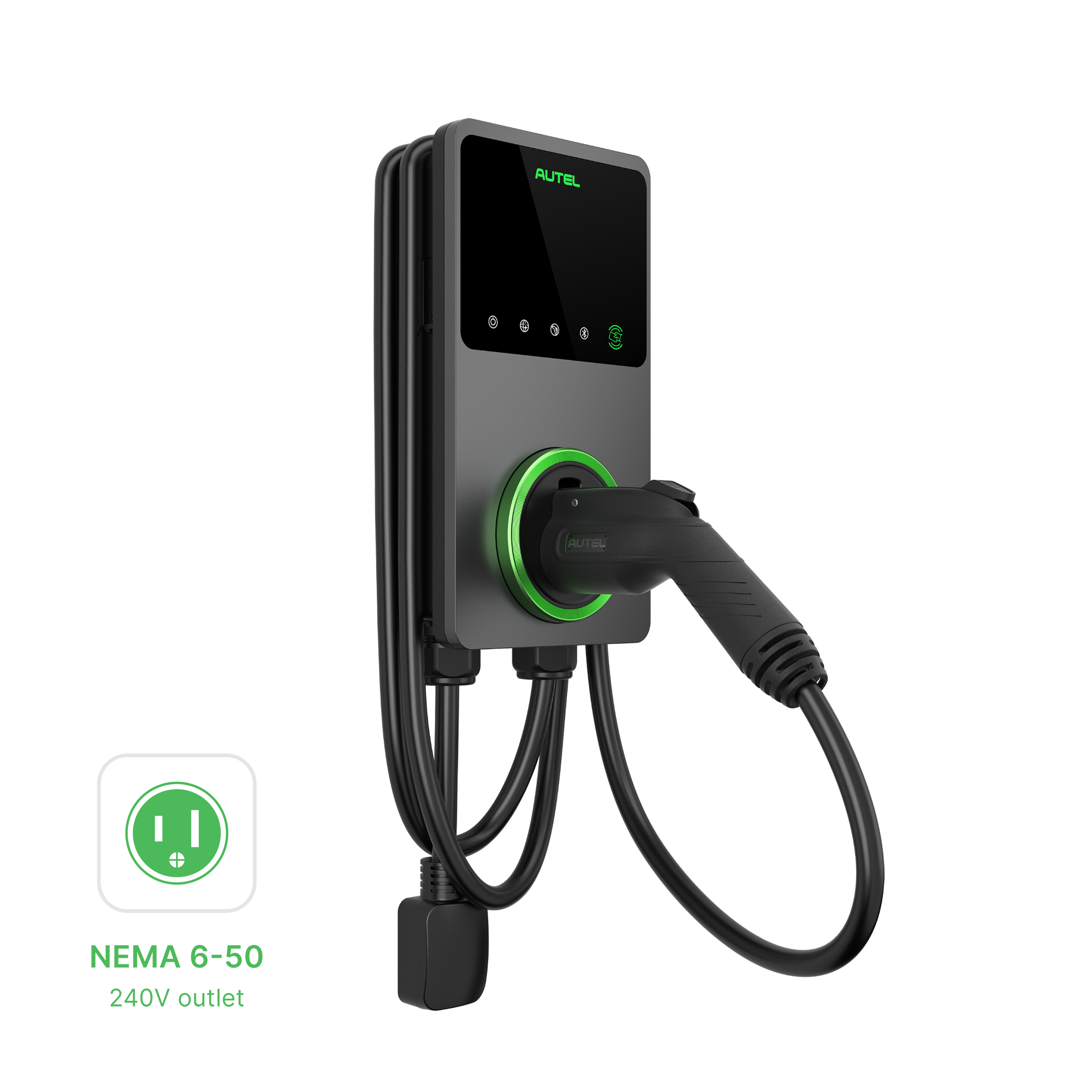

Installation is quick and simple—just 5 minutes to plug into a pre-existing NEMA 14-50/6-50 receptacle. Save thousands on installation costs! This plug-in model is designed for easy mounting and dismounting, making it portable for your convenience when you move. Experience the ultimate in flexibility!
Compliant with NEMA 4X standards, ensuring robust performance in harsh outdoor conditions. Plus, the flexible 25 ft cables provide extended reach for hassle-free charging, no matter where you park!
Easily connect and configure your charger via Bluetooth, WiFi, Ethernet, RS485, or CAN. Enjoy the flexibility to use the charger anytime, with or without an internet connection!
CSA certified for safety and ENERGY STAR certified for efficiency. Plus, enjoy peace of mind with a 3-year warranty and dedicated technical support.
Whether you have a small garage or an open driveway, our flexible product line has a solution for your needs. With a sleek, compact design, we offer both an in-body holster or a separate charging holster to suit the space you have.
Maximize Your Charging Experience with the Autel Charge App!
Pair your MaxiCharger AC Elite with the Autel Charge App for ultimate control over your charging process. Start and stop charging, monitor real-time data, schedule charging sessions, adjust maximum amperage, and much more, all in the app.
Featured Video Show.
Product Support.
Model NumberMaxi US AC W10-N14 / Maxi US AC W10-N6
Connector TypeSAE J1772
Dimensions (H*W*D)13.2” x 7.4” x 3.8” (336 x 187 x 97 mm)
Weight15.4 lbs. (7 kg).
Input cordNEMA 6-50/ NEMA 14-50
Warranty3 years warranty
Charging Cable Length25 ft. (7.5 m)
ConnectivityBluetooth, Wi-Fi, Ethernet, CAN, RS485
User authenticationApp, AutoStart, RFID card
Advanced FeatureAdaptive Load Management (ALM); Dynamic Load Balancing (DLB)
Output RatingMaximum 9.6 kW (240 VAC @ 40 A model)
Input Rating208/240 VAC, 60 Hz, single phase @ 16 A, 24 A, 32 A, 40 A, 48 A, 50 A
ProtectionOvercurrent, overvoltage, undervoltage, integrated surge protection
Operating Temperature-40 to 131 °F (-40 to 55 °C)
MountingWall-mounted or floor using a pedestal
Model NumberMaxi US AC W10-N14-H/ Maxi US AC W10-N6-H
Connector TypeSAE J1772
Dimensions (H*W*D)13.2” x 7.4” x 3.3” (336 x 187 x 85 mm)
Weight15.4 lbs (7 kg)
Input cordNEMA 6-50/ NEMA 14-50
Warranty3 years warranty
Charging Cable Length25 ft. (7.5 m)
ConnectivityBluetooth, Wi-Fi, Ethernet, CAN, RS485
User authenticationApp, AutoStart, RFID card
Advanced FeatureAdaptive Load Management (ALM); Dynamic Load Balancing (DLB)
Output RatingMaximum 9.6 kW (240 VAC @ 40 A model)
Input Rating208/240 VAC, 60 Hz, single phase @ 16 A, 24 A, 32 A, 40 A, 48 A, 50 A
ProtectionOvercurrent, overvoltage, undervoltage, integrated surge protection
Operating Temperature-40 to 131 °F (-40 to 55 °C)
MountingWall-mounted or floor using a pedestal
(888)272-0090
customerservice@qmerit.com
Can this Elite 40 amp car charger power my vehicle?
Yes, our Autel Maxicharger works with all electric and plug-in hybrid vehicles, making it a versatile accessory for a variety of models.
What is the difference between ELite 40A charger and Lite 40A charger?
The Elite 40A supports connections via Bluetooth, Wi-Fi, and Ethernet. Additionally, the Elite 40A offers advanced features such as solar charging and Dynamic Load Balancing (DLB), which are not available on the Lite 40A model.
Does the charger come with the RFID cards?
Our EV charger does not include RFID cards in the shipping package. If you require RFID cards for specific functionalities or access control, you can purchase them separately. Thank you!
What’s in box.
